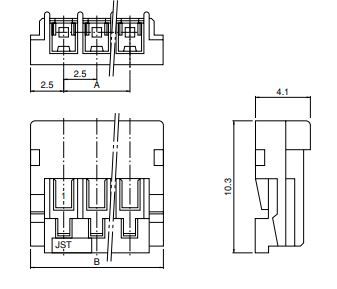

JST HRP05S Connector Receptacle
This 5-position HR Series connector receptacle with a 2.5mm pitch is designed for free hanging installation, supporting crimp termination with a natural, RoHS-compliant finish. It offers reliable electrical connections in compact, modular formats suitable for various electronic assemblies. With a current rating of 3A and voltage support up to 250V, it is compatible with AWG #26 to #22 wire sizes, and suits PC board thicknesses of 0.8 to 1.6mm. Its high reliability, interchangeability, and RoHS compliance make it an excellent choice for industrial and electronic applications requiring durable and versatile connectors.
JST HRP05S Connector Receptacle Specifications:
- Current rating: 3A AC, DC (AWG #22)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Max 10mΩ initially, 20mΩ after environmental testing
- Insulation resistance: Min 1,000MΩ
- Withstanding voltage: 1,000V AC per minute
- Applicable wire: AWG #26 to #22
- Applicable PC board thickness: 0.8 to 1.6mm
- Material: Phosphor bronze, tin-plated, RoHS compliant
- Connector type: Receptacle, free hanging, 5-position
- Pitch: 2.5mm
- Finish: Natural
- RoHS compliant, high reliability, interchangeable
- Suitable for modular electronic assemblies
- Temperature tolerance: -25°C to +85°C
Buy the Buy JST HR Series Connector Part Number HRP05S Online
Purchase the JST HR Series Connector Receptacle HRP05S online today and experience dependable, high-quality modular connections. Designed for 5-position applications with a 2.5mm pitch, it supports crimp termination with a RoHS compliant natural finish. Its compact design is ideal for electronic and industrial assemblies requiring durable electrical links. With a current rating of 3A and voltage capacity of 250V, this connector offers excellent reliability and versatility, making it an essential component for your projects. Secure your supply now for seamless integration and superior performance.
Order your JST HR Series connector HRP05S today and ensure reliable, modular electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy JST HRP05S?
You can click on the BUY or RFQ button to purchase HRP05S from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part HRP05S?
You can download the HRP05S datasheet or visit the JST website for support.
Who is the manufacturer of HRP05S?
JST
