JST SLBTAD01TM05 Power Contact Connector
This power contact designed for LBT Type A connectors enables reliable high-current connections up to 7.0 A for DC power supply systems. Made from copper alloy and tin-plated, it supports wire sizes from AWG 24 to 20 with insulation diameters between 1.11 and 1.44 mm. The contact features a heat-resistant design suitable for temperatures from -25°C to +85°C and complies with RoHS2 standards. It ensures low contact resistance, high durability, and excellent environmental resistance, making it ideal for industrial automation and electronic equipment requiring secure and efficient power connections.
JST SLBTAD01TM05 Power Contact Connector Specifications:
- Current rating: Power supply circuit; 7.0 A AC/DC (AWG #20)
- Voltage rating: 50 V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value 15 mΩ max., after environmental tests 30 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size AWG #24 to #20, insulation OD 1.11 to 1.44 mm
- Material: Copper alloy, tin-plated (reflow treatment)
- RoHS2 compliance
- Product dimensions: outer diameter 1.11–1.44 mm, suitable for high-current industrial applications

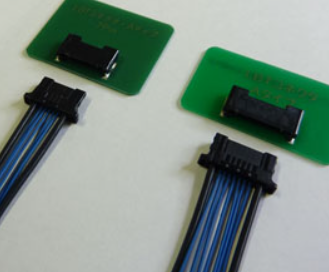

Buy the JST SLBTAD01TM05 – Reliable Power Contact for Industrial Applications
Experience superior power connectivity with the JST SLBTAD01TM05, a high-quality, high-current contact designed for industrial and electronic applications. Crafted from durable copper alloy and tin-plated for enhanced performance, it supports wire sizes from AWG 24 to 20 and features a secure, low-resistance connection. Its temperature range of -25°C to +85°C ensures reliable operation in various environments. Ideal for automation, manufacturing, and control systems, this connector meets RoHS2 standards and guarantees long-lasting, efficient performance in demanding industrial settings.
Buy JST SLBTAD01TM05 power contact now and experience unmatched reliability and performance in your power supply connections.
