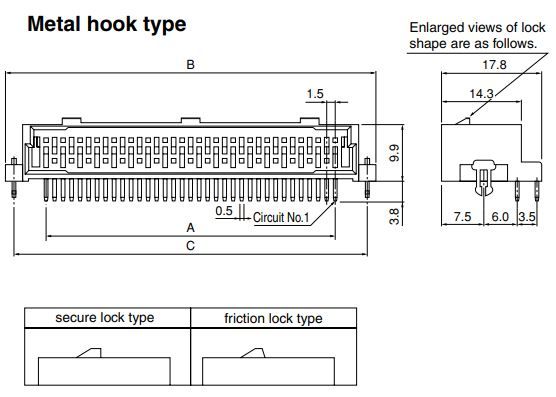

JST JDVPS20LB10ALFSN Connector Header
This JDV Series 20-position metal hook-type connector header features a 1.5mm pitch, reliable secure locking, and tin-plated contacts for corrosion resistance. Designed for PCB mounting, it withstands environmental stresses with RoHS compliance, utilizes brass and phosphor bronze contacts with gold or nickel plating, and features a UL94V-0 glass-filled PBT housing for durability. Ideal for board-to-board connections requiring vibration resistance, this connector supports applications demanding durability and precise positioning across a wide temperature range of -25°C to +85°C, ensuring reliable electrical performance.
JST JDVPS20LB10ALFSN Connector Header Specifications:
- Current rating: 1.0A AC, DC
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: initial/30mΩ max, after environmental testing/50mΩ max
- Insulation resistance: 800MΩ min
- Withstanding voltage: 300V AC/minute
- Applicable PCB thickness: 1.6mm
- Housing material: Glass-filled PBT, UL94V-0
- Contacts: Brass or phosphor bronze, gold or nickel-plated
- Solder tail: Tin-plated (reflow treatment)
- Reinforcing pin: Brass, copper-undercoated, tin-plated
- RoHS compliant
- Shell type: Metal hook with secure lock or resin hook type
- Physical dimensions vary by model, with typical lengths around 355mm for plug and 430mm for receptacle, support for multiple circuits, and secure locking mechanisms for vibration resistance
Buy the JST Series JDV 20-Position Connector Header: JDVPS20LB10ALFSN
Purchase the JST Series JDV 20-Position Connector Header online now to ensure robust and vibration-resistant connections for your electronic projects. This connector features a 1.5mm pitch, secure locking mechanisms, and tin-plated contacts for corrosion resistance. Made from durable glass-filled PBT housing, it withstands environmental stresses and temperature variations from -25°C to +85°C. RoHS compliant, it supports PCB mounting with 1.6mm thickness. Ideal for board-to-board connectivity, this product guarantees reliable electrical performance and long-lasting durability, making it an excellent choice for industrial and electronic applications.
Order your JST Series JDV 20-Position Connector Header today and enhance your PCB connectivity with reliable locking and corrosion-resistant contacts.
Frequently Asked Questions
Where can I buy JST JDVPS20LB10ALFSN?
You can click on the BUY or RFQ button to purchase JDVPS20LB10ALFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part JDVPS20LB10ALFSN?
You can download the JDVPS20LB10ALFSN datasheet or visit the JST website for support.
Who is the manufacturer of JDVPS20LB10ALFSN?
JST
