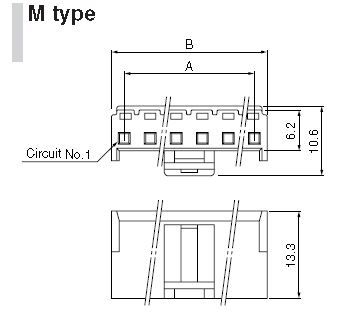

JST VHR2M VH Series connector housing
This VH Series connector housing is designed for two positions with a 3.96mm pitch, featuring a crimp connection and latch lock for secure attachment. Made from UL94V-0 rated natural (white) plastic, it ensures safety with measures to prevent electric shock. Suitable for low-voltage applications, it supports wire ranges from AWG #22 to #16 and fits PC boards up to 1.6mm thick. The connector complies with RoHS regulations and offers reliable, stable connections for consumer electronics and power circuits in various industries.
JST VHR2M VH Series connector housing Specifications:
- Current rating: 10A AC, DC (AWG #16)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/ 10mΩ max. After environmental testing/ 20mΩ max.
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #22 to #16
- Applicable PC board thickness: 1.6mm
- Material: Phosphor bronze, tin-plated (reflow treatment), UL94V-0 rated plastic
- RoHS compliant
Buy the JST Series VH Connector: VHR2M - 3.96mm Pitch Crimp Housing
Purchase the JST VH Series connector housing VHR2M online now to ensure dependable and secure electrical connections for your electronic devices. This 3.96mm pitch connector features a crimp style, latch lock, and is made of UL94V-0 rated natural plastic. It supports wire sizes from AWG 22 to 16 and is RoHS compliant, making it ideal for consumer electronics, power supplies, and signal circuits. Buy now for guaranteed quality, safety, and compatibility with PC boards up to 1.6mm thick.
Order your JST Series VH connector housing VHR2M today and ensure secure, reliable connections for your electronic projects with high-quality standards.
Frequently Asked Questions
Where can I buy JST VHR2M?
You can click on the BUY or RFQ button to purchase VHR2M from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part VHR2M?
You can download the VHR2M datasheet or visit the JST website for support.
Who is the manufacturer of VHR2M?
JST
