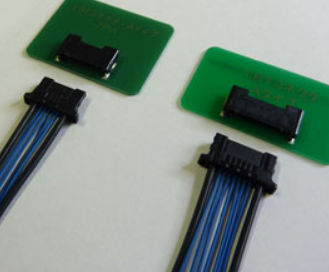

JST LBTAR05V2KKHF Housing Connector
Housing for power and signal connections designed for space efficiency and high current applications. LBT Type A features a heat radiation structure, sequence design, and disconnection capability for reliable circuit connection. Made with durable materials like copper alloy and phosphor bronze, it offers high strength, RoHS2 compliance, and multiple circuit configurations (2 power, 3 signal). Suitable for AC/DC voltage up to 50V, with current ratings of 7.0A for power and 0.5A for signal circles, ensuring safety and performance in electronic systems.
JST LBTAR05V2KKHF Housing Connector Specifications:
- Current rating: Power supply circuit 7.0 A AC/DC (AWG #20), Signal circuit 0.5 A AC/DC (AWG #28)
- Voltage rating: 50 V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Power supply initial/ after environmental tests 15 mΩ/30 mΩ, Signal initial/after tests 20 mΩ/40 mΩ
- Insulation resistance: 100 MΩ minimum
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Power supply AWG #24 to #20, Signal AWG #28
- Material: Copper alloy (power), Phosphor bronze (signal), UL94V-0 flame rating
- Finish: Tin-plated (reflow treatment)
- Housing: Heat resistant resin, RoHS2 compliant
- Dimensions: Varies with model, typically around 82-122 mm length, 2.1-3.45 mm width
- Standards: Recognized E60389, RoHS2 compliant
Buy the Buy JST LBTAR05V2KKHF Part Number 152005 Online
Purchase the JST LBT Type A housing connector online today to benefit from reliable, space-efficient power and signal connection solutions. Designed with durability, high current capacity, and environmental compliance, this connector offers excellent performance for various electronic applications. Its heat radiation structure and robust materials ensure longevity and safety. Ideal for industrial, automation, and consumer electronics, this connector simplifies assembly while providing dependable electrical connectivity. Order now and enhance your project's efficiency with trusted JST quality.
Order your JST Series LBTAR05V2KKHF today and ensure high-strength, space-saving power and signal connections for your electronic systems.
