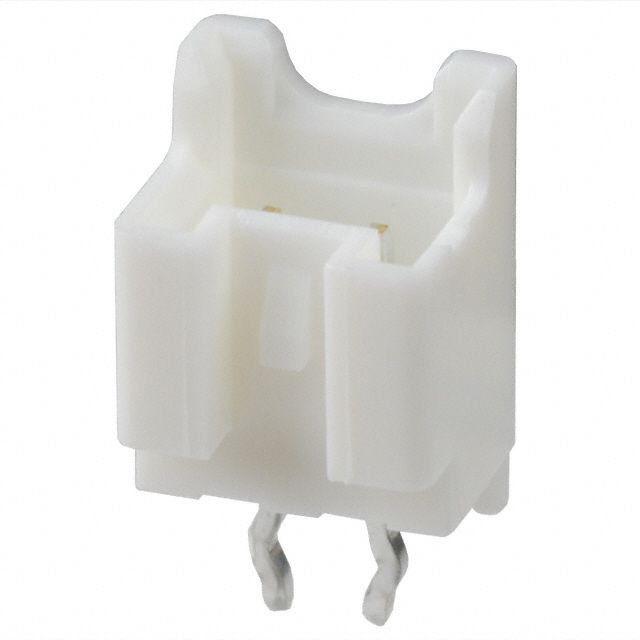

JST B02BPASK1LFSN connector header
This is a PA Series top-entry connector header featuring a 2-position male pin with 2.0mm pitch, designed for through-hole mounting. Made from UL94V-0 rated PA66, it includes a boss for stability and offers a reliable connection with easy installation. The connector features a natural color, standard through-hole dimensions, and a type for secure attachment in various electronic applications, suitable for both industrial and consumer electronics requiring durable and high-quality connectors.
JST B02BPASK1LFSN connector header Specifications:
- Current rating: 3A AC, DC (AWG #22)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/ 10mΩ max, after testing/ 20mΩ max
- Insulation resistance: 1,000MΩ min
- Withstanding voltage: 800V AC/minute
- Applicable wire: AWG #28 to #22
- Material: Post made of copper alloy, tin-plated; Housing made of PA 66, UL94V-0
- Dimensions: 20mm (A), 60mm (B), 124mm (C), 55mm (D)
- RoHS compliant
Buy the Buy JST PA Series 2-Position Connector Part Number B02BPASK1LFSN Online
Purchase the JST PA Series connector header online today to ensure reliable and secure connections for your electronic assemblies. Designed with a 2.0mm pitch and through-hole mounting, this high-quality connector features a stable boss for added durability, UL-rated materials, and a user-friendly natural finish. Ideal for industrial, consumer, or automotive applications, it guarantees excellent electrical performance, easy installation, and consistent quality. Upgrade your projects with this durable and dependable connector – order now for fast delivery!
Order your JST PA Series B02BPASK1LFSN connector today and ensure a dependable, high-quality connection for your electronic projects.
Frequently Asked Questions
Where can I buy JST B02BPASK1LFSN?
You can click on the BUY or RFQ button to purchase B02BPASK1LFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B02BPASK1LFSN?
You can download the B02BPASK1LFSN datasheet or visit the JST website for support.
Who is the manufacturer of B02BPASK1LFSN?
JST
