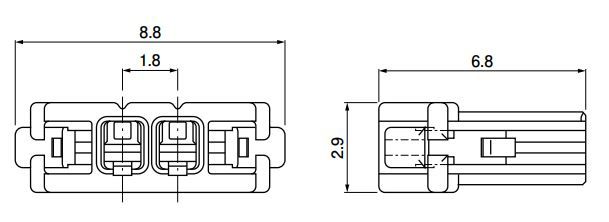

JST LEAR02VS LED Receptacle Connector
The SSL connector is a compact 2-position receptacle housing designed for reliable socket contact connections, suitable for board-to-cable and wire applications. It features a 1.80 mm pitch, rated for 3A AC/DC and 300V, with a temperature range from -55°C to +105°C. Constructed from durable, tin-plated copper alloy with UL94V-0 flame resistance, it includes a secure locking mechanism, prevent-inverse insertion feature, and a contact lance for secure wire crimping. This connector complies with RoHS and is ideal for space-saving LED lamp connections.
JST LEAR02VS LED Receptacle Connector Specifications:
- Current rating: 3A AC, DC
- Voltage rating: 300V AC, DC
- Temperature range: -55°C to +105°C
- Contact resistance: Max. 10mQ initial / 20mQ after testing
- Insulation resistance: Min. 1,000MQ
- Withstanding voltage: 1,700V AC/min
- Applicable wire: AWG #30 to #22, Insulation OD: 0.7 to 1.3mm
- Material: Copper alloy, tin-plated, RoHS compliant
- Flammability: UL94V-0
- Housing: PBT, UL94V-0, natural color
- Seal and locking features: Secure locking, inverse insertion prevention
- Connector type: Receptacle housing for socket contacts
- Connector pitch: 1.80 mm
- Series: LEA
- Standards: Recognized E60389, Certified LR20812
Buy the JST Series LEA LED Connector: LEAR02VS
Order the JST LEAR02VS LED connector online today for reliable and space-efficient LED lamp connections. Designed with a secure locking mechanism and featuring a 1.80 mm pitch, this connector supports wire sizes from AWG #30 to #22, rated for 3A and 300V. Its durable, tin-plated copper alloy construction, combined with RoHS compliance, ensures longevity and safety in various electronic applications. Perfect for board-to-cable wiring, this high-quality connector simplifies installation and guarantees secure, trouble-free connections for professional and DIY projects alike.
Get JST LEAR02VS LED connector today—built for space-saving wiring and long-lasting durability.
Frequently Asked Questions
Where can I buy JST LEAR02VS?
You can click on the BUY or RFQ button to purchase LEAR02VS from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part LEAR02VS?
You can download the LEAR02VS datasheet or visit the JST website for support.
Who is the manufacturer of LEAR02VS?
JST
