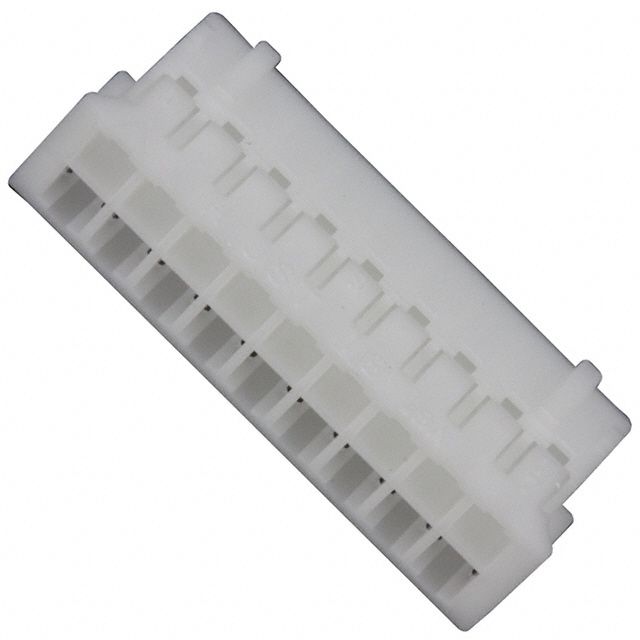

JST PHDR18VS Wire-to-Board Connector
This is a free-hanging, crimp-style header connector from the PHD Series with 18 positions and a 2.0mm pitch. Suitable for wire sizes 28-22 AWG, it features a natural finish for easy identification and reliable connections. Designed for high-density, low-profile applications, it offers robust, fully shrouded headers in both top and side entry types, with a current capacity of 3A and voltage rating of 250V. Made from UL94V-0 nylon, it ensures safety and compliance with RoHS standards, making it ideal for compact electronic assemblies requiring dependable wire-to-board connections.
JST PHDR18VS Wire-to-Board Connector Specifications:
- Current rating: 3A AC, DC (AWG #22)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/10mΩ max, After testing/20mΩ max
- Insulation resistance: 1,000MΩ min
- Withstanding voltage: 800V AC/minute
- Applicable wire: AWG #28 to #22
- Applicable PC board thickness: 1.6mm
- Material: UL94V-0 nylon (natural)
- Connector type: Crimp style header
- Number of positions: 18
- Pitch: 2.0mm
- RoHS compliant
- Dimensions vary by model, with detailed size specifications available externally
Buy the JST Series PHD 2.0mm Pitch Wire-to-Board Connectors: PHDR18VS
Order the JST PHD series 18-position wire-to-board connector with 2.0mm pitch online today. This high-quality, RoHS compliant connector ensures secure, reliable connections for your electronic projects. Made from flame-retardant UL94V-0 nylon, it handles 3A current and 250V voltage, suitable for wire sizes 28-22 AWG. Its robust, fully shrouded design supports high-density, low-profile configurations, perfect for compact and demanding assemblies. Purchase now and enjoy fast delivery, excellent technical support, and a trusted brand for your electronic needs.
Buy JST PHD series 18-position 2.0mm pitch connector now and experience unmatched reliability and performance for your electronic assemblies.
Frequently Asked Questions
Where can I buy JST PHDR18VS?
You can click on the BUY or RFQ button to purchase PHDR18VS from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part PHDR18VS?
You can download the PHDR18VS datasheet or visit the JST website for support.
Who is the manufacturer of PHDR18VS?
JST
