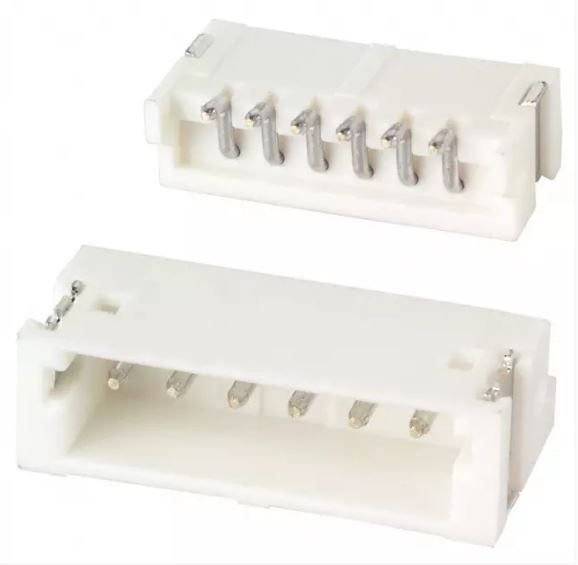

JST S6BZRSM4ATFLFSN Surface Mount Connector Header
This ZH Series 6-position surface mount connector header offers a 1.5mm pitch with a reliable, compact design ideal for electronic assemblies. It features a right-angle mounting style with a detent lock mechanism, ensuring secure electrical connections and easy insertion. Constructed from high-quality materials including brass pins with tin plating and a glass-filled PA 66 housing, it supports a broad range of applications requiring sturdy and corrosion-resistant connectors. Suitable for high-density mounting, it is RoHS compliant, meeting stringent environmental standards for reliable industrial and electronic use.
JST S6BZRSM4ATFLFSN Surface Mount Connector Header Specifications:
- Number of Circuits: 6
- Pitch: 1.5mm
- Material (Pin): Brass, copper-undercoated, tin-plated (reflow treatment)
- Housing Material: Glass-filled PA 66, UL94V-0, natural
- Contact Resistance: Max 20mΩ initially, Max 30mΩ after environmental testing
- Voltage Rating: 50V AC/DC
- Current Rating: 1.0A AC/DC (AWG #26)
- Temperature Range: -25°C to +85°C
- Applicable Wire Range: AWG #32 to #26
- Insulation Resistance: Min 500MΩ
- Withstanding Voltage: 500V AC for 1 minute
- RoHS Compliant
- Dimensions: Suitable for 0.6 to 1.2mm, 1.6mm PCB thickness
Buy the JST ZH Series 6-Position Connector Header – Reliable Surface Mount for Industrial Applications
Enhance your electronic assembly with this reliable surface mount connector header featuring a 1.5mm pitch and 6 circuits. Designed with a right-angle, detent lock, and constructed from high-quality materials for durability. Suitable for high-density applications, it supports efficient and secure electrical connections. RoHS compliant and easy to install, this connector is ideal for industrial electronics, automation systems, and other electronic devices where space-saving and dependable connections are essential. Order online now for fast delivery and superior performance.
Buy JST ZH Series 6-Position Connector Header now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy JST S6BZRSM4ATFLFSN?
You can click on the BUY or RFQ button to purchase S6BZRSM4ATFLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part S6BZRSM4ATFLFSN?
You can download the S6BZRSM4ATFLFSN datasheet or visit the JST website for support.
Who is the manufacturer of S6BZRSM4ATFLFSN?
JST
