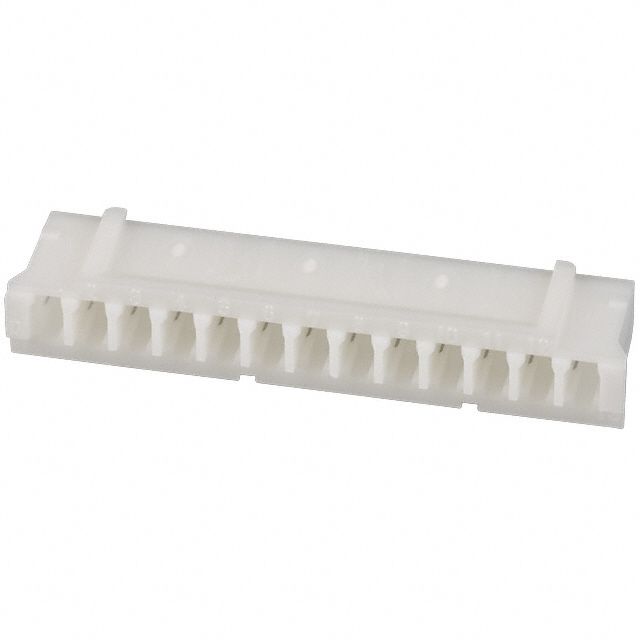

JST PHR13 Connector Housing
This PH Series 13-position connector housing with a 2.00mm pitch is designed for high-density applications requiring reliable, easy-to-assemble connections. Made from natural-colored PA66, it features a compact, low-profile design measuring approximately 24.0mm in length and 27.9mm in width. The connector housing supports Crimp style termination with a current rating of 2A, a voltage rating of 100V, and a temperature range of -25°C to +85°C. Its environmentally compliant build ensures durability and safety, suitable for internal wiring connections in various electronic devices and PCBs.
JST PHR13 Connector Housing Specifications:
- Pitch: 2.00mm
- Number of Positions: 13
- Material: PA 66, ULO4V-0, natural (white)
- Contact Material: Copper alloy, tin-plated (reflow treatment)
- Current Rating: 2A AC/DC
- Voltage Rating: 100V AC/DC
- Temperature Range: -25°C to +85°C
- Insulation Resistance: 1,000M min.
- Contact Resistance: Initial value/ 10m@ max, after environmental testing/ 20mΩ max.
- Applicable Wire: AWG #32 to #24
- Board Thickness: 0.8 to 1.6mm
- RoHS compliant
- Dimensions: Length approx. 24.0mm, width approx. 27.9mm
- Model No.: PHR13
- Suitable for crimp termination, reliable contact, compact low-profile design
Buy the JST Series PHR13 Connector Housing: 2.00mm Pitch 13-Position
Order the JST PHR13 connector housing online today and ensure a high-quality, reliable connection for your electronic projects. Designed with a 2mm pitch, this 13-position housing is made from durable, RoHS-compliant natural PA66 material. Its compact and low-profile design makes it ideal for high-density internal wiring and PCB applications. Featuring crimp termination, it supports up to 2A current and 100V voltage ratings, with excellent environmental resistance. Buy online now for quick delivery and 24/7 customer support, ensuring a seamless shopping experience.
Buy JST PHR13 connector housing now and experience unmatched reliability and performance in high-density wiring applications.
Frequently Asked Questions
Where can I buy JST PHR13?
You can click on the BUY or RFQ button to purchase PHR13 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part PHR13?
You can download the PHR13 datasheet or visit the JST website for support.
Who is the manufacturer of PHR13?
JST
