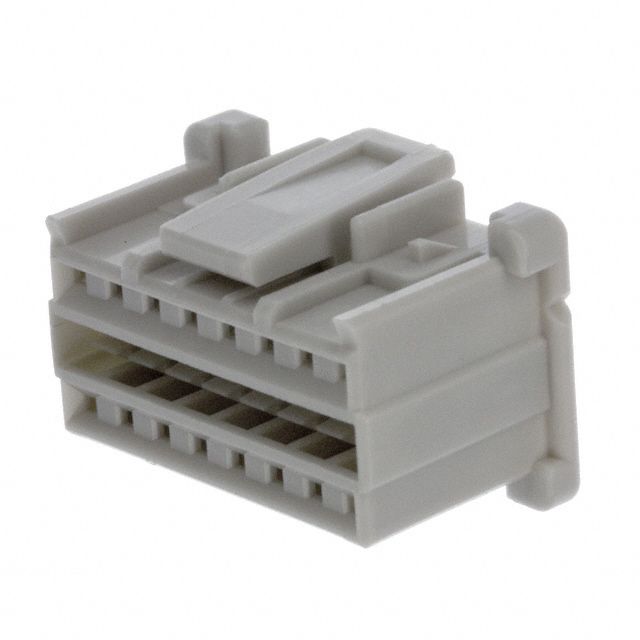

JST PNDP16VZ High-Density Connector
This high-density, 16-position connector housing from the PND Series features a 2.00mm pitch and a secure latch lock for reliable wire-to-board connections. Designed for free hanging installation, it offers excellent operability with low insertion force and robust locking to withstand external forces. Made from UL94V-0 rated ivory-colored glass-filled polyamide, it’s suitable for applications requiring a compact, secure connection. Compatible with AWG #28 to #22 wires, the connector ensures compliance with RoHS standards and provides a durable, high-performance electrical connection solution for industrial and electronic use.
JST PNDP16VZ High-Density Connector Specifications:
- Pitch: 2.00mm
- Number of positions: 16
- Material: Glass-filled UL94V-0 polyamide (ivory)
- Wire Range: AWG #28 to #22
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Temperature Range: -25°C to +85°C
- Insulation Resistance: 1,000MΩ min
- Withstanding Voltage: 800V AC/minute
- Contact Resistance: Not specified, compliant with RoHS
- Color: Ivory
- Applicable wire insulation diameter: 0.13~0.23 mm
- Quantity per reel: 8,000
- Compliance: RoHS, recognized E60389, certified LR20812
Buy the Buy High-Density Connector Parts Series 16-Position 2.00mm Pitch Part Number PNDP16VZ Online
Secure your wiring projects with this durable high-density connector housing from the PND Series. Featuring a 2.00mm pitch and a latch lock, it ensures a robust, reliable connection suitable for various electronic and industrial applications. The ivory-colored housing made from UL94V-0 rated glass-filled polyamide offers excellent durability and high electrical performance. Compatible with wires from AWG #28 to #22, it supports withstand voltage of 800V and current ratings of 3A. Easy to install,RoHS compliant, perfect for compact designs and demanding environments.
Buy High-Density Connector from the PND Series PNDP16VZ now and experience secure, reliable wiring solutions perfect for industrial and electronic applications.
Frequently Asked Questions
Where can I buy JST PNDP16VZ?
You can click on the BUY or RFQ button to purchase PNDP16VZ from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part PNDP16VZ?
You can download the PNDP16VZ datasheet or visit the JST website for support.
Who is the manufacturer of PNDP16VZ?
JST
