JST S12BXHALFSN Connector Header

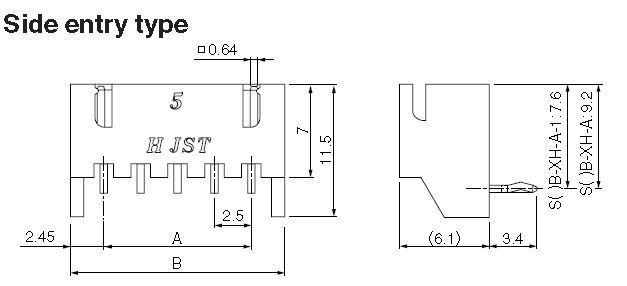

The component is a 12-position side-entry connector header from the XH Series, with a 2.50mm pitch. It features through-hole mounting options including press-fit and solder types, and comes in a natural (uncolored) finish. Made of durable brass with a copper-undercoated, tin-plated surface, it is RoHS compliant. Designed for easy PCB mounting, the header supports a maximum current of 3A and voltage of 250V. Suitable for compact electronic assemblies, it provides reliable electrical connections in industrial and consumer applications.
JST S12BXHALFSN Connector Header Specifications:
- Pitch: 2.50mm
- Number of Circuits: 12
- Material Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Material Wafer: PA 66, UL94V-0, natural (white)
- Current Rating: 3A AC, DC
- Voltage Rating: 250V AC/DC
- Temperature Range: -25°C to +85°C
- Insulation Resistance: 1,000MΩ min
- Contact Resistance: Not specified
- RoHS compliant
- Mounting: Through-hole, press-fit or solder types
- Certification: RoHS compliant
Buy the JST Series XH Connector: S12BXHALFSN
Purchase the JST S12BXHALFSN connector header online today and enjoy reliable, high-quality electrical connections. Designed with a 2.50mm pitch and RoHS compliance, this 12-position side-entry connector is suitable for PCB mounting through-hole applications. Crafted from copper alloy with tin-plated surfaces for enhanced durability, it supports up to 3A current and 250V voltage ratings. Perfect for compact, industrial, and consumer electronics, this connector guarantees secure assembly and long-term performance. Order now for quick delivery and easy integration into your designs.
Get JST S12BXHALFSN today—built for precision and long-lasting durability in electronic connections.
Frequently Asked Questions
Where can I buy JST S12BXHALFSN?
You can click on the BUY or RFQ button to purchase S12BXHALFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part S12BXHALFSN?
You can download the S12BXHALFSN datasheet or visit the JST website for support.
Who is the manufacturer of S12BXHALFSN?
JST
