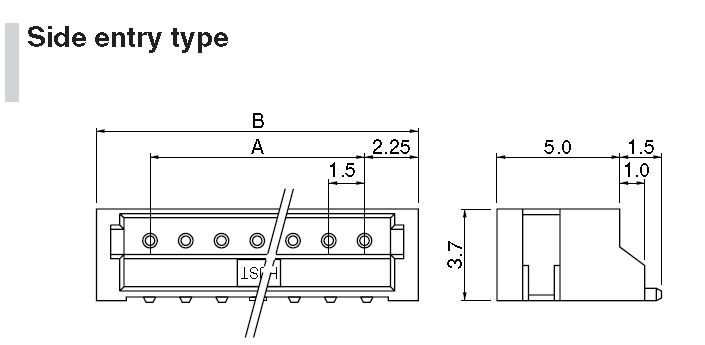

JST S4BZRSM4ATFLFSN Surface Mount Connector Header
The surface mount right-angle connector header from the ZH Series features four positions with a 1.5mm pitch, making it ideal for reliable PCB connections in compact electronic devices. It utilizes twin U-slots, a 3-point insulation grip, and distortion-resistant construction for robust performance even under harsh environmental conditions. Made from phosphor bronze with tin-plating and a glass-filled UL94V-0 housing, this connector ensures excellent electrical conduction, durability, and RoHS compliance. Suitable for applications requiring stable, space-efficient connections in automation, industrial equipment, and electronics assembly.
JST S4BZRSM4ATFLFSN Surface Mount Connector Header Specifications:
- Current rating: 0.7A AC, DC (AWG #28)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Insulation resistance: 500MΩ min.
- Withstanding voltage: 500V AC/minute
- Applicable wire: UL1571, AWG #30, #28, tin-coated, 7 strands
- Insulation O.D.: 0.7 to 0.8mm
- Applicable PCB thickness: 0.6 to 1.2mm, 1.6mm
- Material: Contact Phosphor bronze, tin-plated; Housing Glass-filled PA 66, UL94V-0
- RoHS compliant, recognized under E60389, certified LR20812
- Dimensions vary from 15mm to 180mm depending on model, with box quantity of 2000
Buy the JST Series ZH 4-Position Connector: S4BZRSM4ATFLFSN
Order the JST Series ZH surface mount connector header today and enjoy seamless PCB integration in your electronic or industrial projects. Featuring a robust design, a 1.5mm pitch, twin U-slots, and 4 positions, this connector guarantees reliable electrical contact under demanding conditions. Made from high-quality materials with tin-plated contacts and UL94V-0 housings, it is RoHS compliant and suitable for compact, space-saving applications. Experience fast online purchasing, consistent quality, and excellent performance for all your electronic connection needs.
Buy JST Series ZH 4-Position Connector header now and ensure reliable PCB connections with durable, space-efficient design for industrial and electronic applications.
Frequently Asked Questions
Where can I buy JST S4BZRSM4ATFLFSN?
You can click on the BUY or RFQ button to purchase S4BZRSM4ATFLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part S4BZRSM4ATFLFSN?
You can download the S4BZRSM4ATFLFSN datasheet or visit the JST website for support.
Who is the manufacturer of S4BZRSM4ATFLFSN?
JST
