JST SCN001T10K PCB Connector

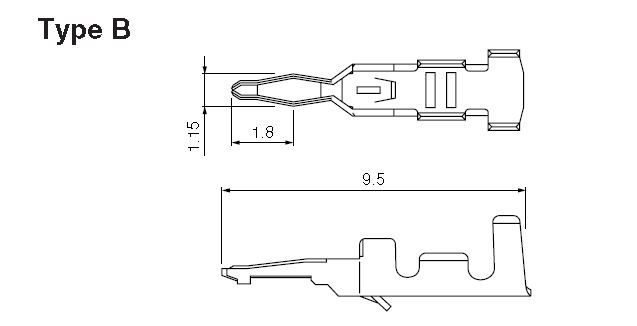

This SCN Series B-type connector features a 2.5mm pitch compatible with high-density PCB assemblies in various electronic devices, including audio systems and consumer electronics. Constructed from brass with tin plating, it offers excellent electrical conductivity, corrosion resistance, and RoHS compliance. It supports wire gauges from 28 to 22 AWG, handles 250V, and has a current rating of 3A, making it suitable for reliable low-power electronic connections. Its design provides secure mounting with lances and accommodates different PCB thicknesses of 1.2mm and 1.6mm for flexible installation. Ideal for hobbyists and professionals secures and simplifies electrical wiring.
JST SCN001T10K PCB Connector Specifications:
- Current rating: 3A AC, DC (AWG #22)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Insulation resistance: 1,000MΩ minimum
- Withstanding voltage: 800V AC/minute
- Applicable wire: AWG #28 to #22
- Applicable PC board thickness: 1.2mm, 1.6mm
- Material: Brass with tin plating
- RoHS compliant
- Standards: Recognized E60389, Certified LR20812
Buy the JST SCN001T10K – Reliable 2.5mm Connector for Industrial Applications
Enhance your electronic assemblies with the JST SCN series 2.5mm pitch connector, supporting wire gauges from 28 to 22 AWG and rated for 250V. Made of durable brass with a tin-plated finish, this connector ensures excellent electrical conductivity and corrosion resistance. Suitable for PCB thicknesses of 1.2mm and 1.6mm, it offers secure mounting and reliable connections for consumer electronics, audio devices, and hobby projects. Order online today for fast delivery and trusted quality.
Buy JST SCN001T10K now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy JST SCN001T10K?
You can click on the BUY or RFQ button to purchase SCN001T10K from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SCN001T10K?
You can download the SCN001T10K datasheet or visit the JST website for support.
Who is the manufacturer of SCN001T10K?
JST
