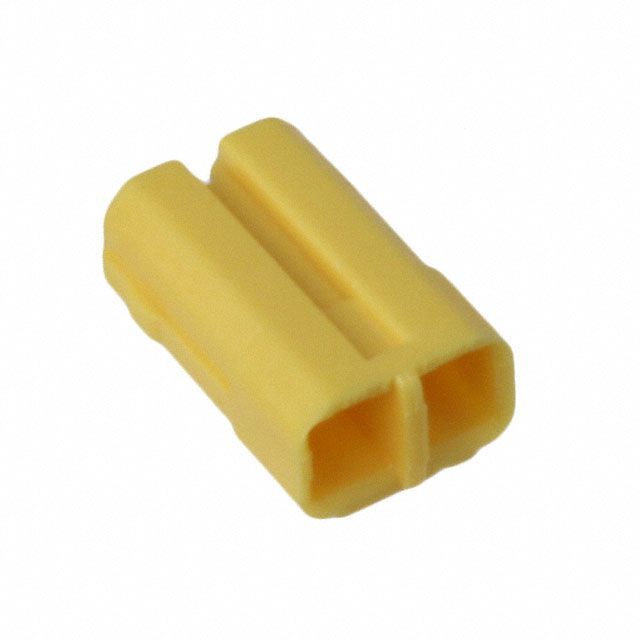

JST SFHR02VL Female Crimp Socket
This 2-position female crimp socket connector housing from the SFH series features a compact 1.8mm pitch, ideal for space-saving applications. Designed for crimping connections, it supports wire sizes from AWG 30 to 22, with insulation O.D. range of 0.7 to 1.2mm. Made of UL94V-0 thermoplastic resin and copper alloy, tin-plated for durability. It provides a current rating of 4A, voltage up to 350V, and withstands environmental stresses with reliable insulation resistance of 1,000MΩ. The connector’s yellow color aids easy identification, ensuring quick installation in electronic devices.
JST SFHR02VL Female Crimp Socket Specifications:
- Current rating: 4A AC, DC
- Voltage rating: 350V AC, DC
- Temperature range: -25°C to +85°C
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 1,700V AC/minute
- Applicable wire: AWG #30 to #22, insulation O.D. 0.7 to 1.2mm
- Material: Copper alloy, tin-plated
- Connector type: Female crimp socket housing
- Pitch: 1.8mm
- Color: Yellow
- Mounting: Free hanging
- RoHS compliant
Buy the Buy JST SFH Connector Part Number SFHR02VL Online
Purchase the JST SFH Female Crimp Socket Connector today for your electronic assembly projects. Designed with a 1.8mm pitch and space-saving features, it ensures reliable connections and easy handling. Made of durable, UL94V-0 thermoplastic and copper alloy, featuring tin plating for long-lasting performance. Suitable for wire sizes from AWG 30 to 22, supporting up to 350V and 4A current. Perfect for compact applications, the yellow color provides quick identification. Order now to enjoy fast, secure online checkout and delivery.
Get JST SFHR02VL today—designed for space-efficient electronic connections with reliable crimping quality.
Frequently Asked Questions
Where can I buy JST SFHR02VL?
You can click on the BUY or RFQ button to purchase SFHR02VL from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SFHR02VL?
You can download the SFHR02VL datasheet or visit the JST website for support.
Who is the manufacturer of SFHR02VL?
JST
