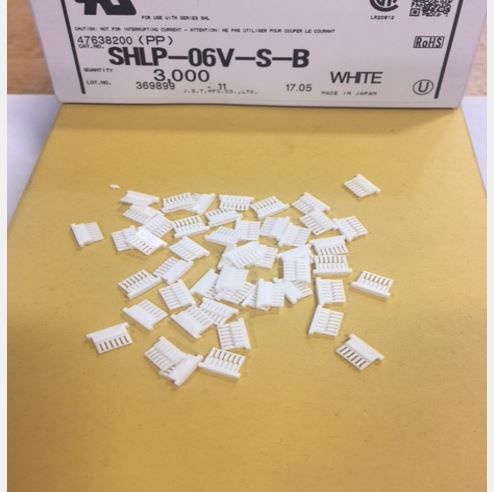

JST SHLP06VSB Connector housing
This connector housing from the SHL Series features 6 positions with a 1.0mm pitch, designed for cable mounting and reliable electronic assembly. It operates at 50V, has a low insertion force, and a natural color finish, making it suitable for various electronic applications. Constructed with phosphor bronze contact materials and UL94V-0 rated PBT housing, it ensures durability, compliance with RoHS standards, and high electrical performance. This connector supports wire sizes from AWG #32 to #28, offering a stable and secure connection for reliable device operation.
JST SHLP06VSB Connector housing Specifications:
- Current rating: 1.0A AC, DC (AWG #28)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Insulation resistance: 100MΩ min.
- Withstanding voltage: 500V AC/minute
- Applicable wire: AWG #32 to #28
- Contact material: Phosphor bronze, tin-plated (reflow treatment)
- Housing material: PBT, UL94V-0, natural (white)
- RoHS compliant
- Dimensions: 1.0mm pitch, 6 positions, length varies with version, typically around 46mm for SHLP-06V-S-B
Buy the JST SHL Series Connectors – Reliable 1.0mm Precision for Industrial Applications
Order the JST SHL Series connector housing online today to benefit from quick delivery, high-quality construction, and superior performance. Designed for electronic and industrial applications, this 6-position connector with a 1.0mm pitch provides a reliable connection solution. It supports wire sizes up to AWG 28, operates at 50V, and features a low insertion force for easy assembly. Ideal for various device connections, the housing is made of durable UL94V-0 rated PBT with phosphor bronze contacts, ensuring longevity and compliance with RoHS standards. Fast, secure, and available now for your manufacturing needs.
Buy JST SHL Series connector housing now and ensure reliable, low-force, high-performance electronic connections in your industrial projects.
Frequently Asked Questions
Where can I buy JST SHLP06VSB?
You can click on the BUY or RFQ button to purchase SHLP06VSB from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SHLP06VSB?
You can download the SHLP06VSB datasheet or visit the JST website for support.
Who is the manufacturer of SHLP06VSB?
JST
