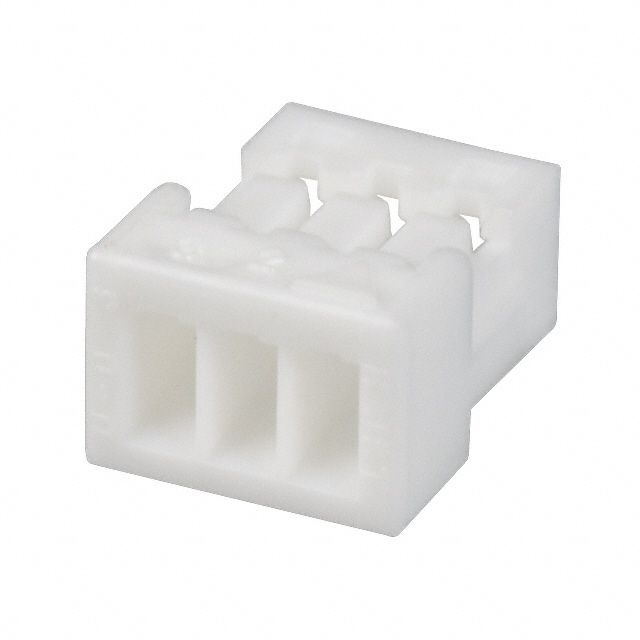

JST SHR03VS Connector Housing
This 3-position connector housing from the SH Series features a 1.0mm pitch and crimp-style contacts, suitable for free-hanging applications. Made from durable PBT with a natural finish, it complies with RoHS standards. The connector's compact, low-profile design makes it ideal for space-constrained circuits. It is compatible with wire sizes from AWG #32 to #28 and includes detailed specifications such as insulation O.D. of 0.4 to 0.8mm, contact resistance of up to 20mΩ initially, and withstands 500V AC per minute. Designed for reliable performance with UL94V-0 flammability and tin-plated contact surfaces.
JST SHR03VS Connector Housing Specifications:
- Current rating: 1.0A AC, DC (AWG #28)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/20mΩ max; after environmental testing/40mΩ max
- Insulation resistance: 100MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable wire: Conductor size/AWG #32 to #28, insulation O.D./0.4 to 0.8mm
- Material: Phosphor bronze, tin-plated (reflow treatment)
- Housing Material: PBT, UL94V-0, natural (white)
- RoHS compliant
- Dimensions: Suitable for 1.0mm pitch spacing; compact and low profile design
Buy the Buy JST SH Series Connector Part Number SHR03VS Online
Purchase the JST SHR03VS connector housing today for reliable, space-efficient connections. Featuring a 1.0mm pitch, crimp-style contacts, and RoHS compliance, it’s ideal for compact electronic assemblies. Its natural finish and durable construction ensure long-lasting performance. Easy to install with detailed specifications for current, voltage, and temperature ratings, this connector is suitable for applications requiring space-saving, high-quality connections. Order online now for fast delivery and superior quality in your electronic projects.
Get JST SHR03VS today—designed for reliable connections with space-saving and crimp-style contacts, built for durability in electronic devices.
Frequently Asked Questions
Where can I buy JST SHR03VS?
You can click on the BUY or RFQ button to purchase SHR03VS from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SHR03VS?
You can download the SHR03VS datasheet or visit the JST website for support.
Who is the manufacturer of SHR03VS?
JST
