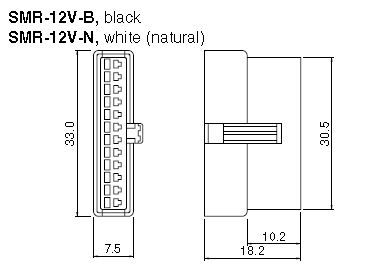

JST SMR12VB Connector Receptacle
This is a 12-position, free-hanging connector receptacle from the SM Series. It features a 2.5mm pitch, is rated for 250V, and supports wire gauges from 28 to 22 AWG. The latch is crimped for secure termination, and the housing is black in color. Designed for high-density, small current applications, it complies with RoHS standards. Ideal for electronic devices requiring reliable, compact connectors, it offers robust construction, withstanding voltages up to 1500V AC and temperatures from -25°C to +85°C, ensuring durability and safety in various industrial and consumer electronics.
JST SMR12VB Connector Receptacle Specifications:
- Current rating: 3A AC, DC max.
- Voltage rating: 250V AC, DC max.
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/10mΩ @ max. After environmental testing/20mΩ max.
- Insulation resistance: 500MΩ min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #28 to #22 (0.08 to 0.33mm²)
- Applicable panel thickness: 0.5 to 2.0mm
- Material: PA 6, UV-resistant
- Housing color: Black
- RoHS compliant
- High-density, small current applications, with reliable housing construction
- Mountable on various panels, with arm lock mechanism for secure attachment
Buy the JST Series SM 12-Position Connector Receptacle: SMR12VB
Discover the high-quality JST Series SM 12-Position Connector Receptacle, designed for reliability and durability in electronic applications. Featuring a 2.5mm pitch, support for wire gauges from 28 to 22 AWG, and a maximum voltage of 250V, this connector is ideal for high-density, small current circuits. Its RoHS-compliant housing supports panel thicknesses from 0.5 to 2.0mm, with a secure crimped latch ensuring effortless installation. Choose this versatile connector for your next project and enjoy dependable performance wherever precision and safety matter most.
Order your JST Series SM 12-Position Connector Receptacle today and ensure secure, reliable connections for your electronic projects with durable construction.
Frequently Asked Questions
Where can I buy JST SMR12VB?
You can click on the BUY or RFQ button to purchase SMR12VB from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SMR12VB?
You can download the SMR12VB datasheet or visit the JST website for support.
Who is the manufacturer of SMR12VB?
JST
