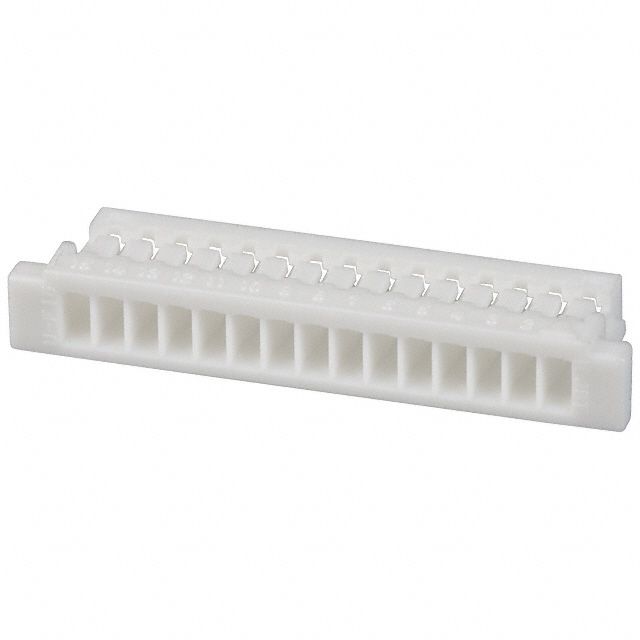

JST SHR15VSB Connector housing
This is a connector housing from the SH Series with 15 positions, featuring a 1.0mm pitch, designed for free hanging mounting, and utilizing crimp-style terminals. Made of PBT with UL94V-0 flame resistance in natural color, it has protrusions for secure assembly and is RoHS compliant. Suitable for low-current applications, it supports conductor sizes from AWG #32 to #28, and features dimensions compatible with both top and side entry configurations. The housing ensures reliable connection with copper alloy contacts, tin-plated for durability, and is supplied on embossed tape for easy assembly and automation.
JST SHR15VSB Connector housing Specifications:
- Current rating: 1.0A AC, DC (AWG #28)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/20mΩ max, after testing/40mΩ max
- Insulation resistance: 100MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable wire: Conductor size AWG #32 to #28, insulation OD 0.4 to 0.8mm
- Housing material: PBT, UL94V-0, natural color
- Contact material: Copper alloy, tin-plated
- Housing dimensions vary but support compact low-profile design
- Mounting type: Free hanging, with protrusions or fitouts for secure connection
- RoHS compliant, suitable for automation and electronic assembly
- Compatible with crimp-style terminals, supplied on embossed tape
Buy the JST Series SH Connector Housing: SHR15VSB
Experience seamless online ordering of the JST SH Series SHR15VSB connector housing. Designed for durability and reliability, this low-profile 15-position connector is perfect for automation, electronic devices, and manufacturing. Made from flame-resistant PBT with tin-plated copper contacts, it ensures long-lasting performance. Easily mountable with protrusions for secure assembly, it supports wire sizes from AWG #32 to #28 with a maximum voltage of 50V. Buy online today for fast delivery, competitive pricing, and trusted quality for your electrical and electronic assembly projects.
Buy JST SH Series SHR15VSB connector housing now and experience reliable, high-quality connections perfect for your electronic projects and automation needs.
Frequently Asked Questions
Where can I buy JST SHR15VSB?
You can click on the BUY or RFQ button to purchase SHR15VSB from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SHR15VSB?
You can download the SHR15VSB datasheet or visit the JST website for support.
Who is the manufacturer of SHR15VSB?
JST
