JST 06RZWPVWKNN Waterproof Connector Receptacle
This is a 6-position waterproof connector receptacle assembly from the ZWP series. It features a 1.5mm pitch, designed for reliable connection in wet or harsh environments. The connector is rated for 50V, suitable for 28-24 AWG wires, with tin-plated contacts for corrosion resistance. It is classified as Grade 7, indicating high-quality standards. The assembly includes a silicone rubber seal and housing made of PBT, ensuring excellent ingress protection and durability. It is ideal for industrial, automation, and electronic applications requiring secure waterproof connections.
JST 06RZWPVWKNN Waterproof Connector Receptacle Specifications:
- Pitch: 1.5 mm
- Number of positions: 6
- Current rating: 2 A AC/DC
- Voltage rating: 50 V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial / 10 mΩ max., After tests / 20 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Insulated wire of annealed copper, tin-plated
- Wire size: AWG #28 to #24
- Insulation O.D.: 0.9 to 1.2 mm
- Ingress protection: Grade 7 (IPX7)
- Housing material: PBT, UL94V-0, black
- Seal material: Silicone rubber, brown
- RoHS2 compliant

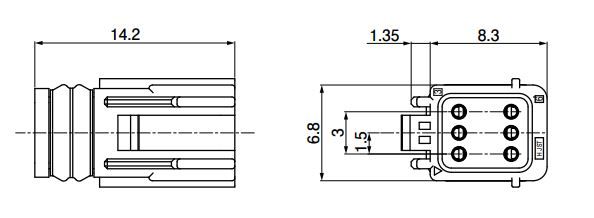

- Dimensions and physical details: Refer to datasheet
Buy the JST 06RZWPVWKNN – Reliable Waterproof Connector for Industrial Applications
Secure your electronic and industrial projects with the waterproof connector receptacle from the ZWP series. Featuring a 1.5mm pitch, rated for 50V, compatible with 28-24 AWG wires, and tin-plated for corrosion resistance. The Grade 7 ingress protection guarantees high durability in wet or harsh conditions. Designed with robust PBT housing and silicone rubber seals, this assembly ensures reliable performance, safety, and longevity. Ideal for automation, electronics, and rugged environments. Buy online now and experience quality you can trust.
Order your JST Series 06RZWPVWKNN waterproof connector today and ensure waterproof, reliable connections for demanding industrial environments.
Frequently Asked Questions
Where can I buy JST 06RZWPVWKNN?
You can click on the BUY or RFQ button to purchase 06RZWPVWKNN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 06RZWPVWKNN?
You can download the 06RZWPVWKNN datasheet or visit the JST website for support.
Who is the manufacturer of 06RZWPVWKNN?
JST
