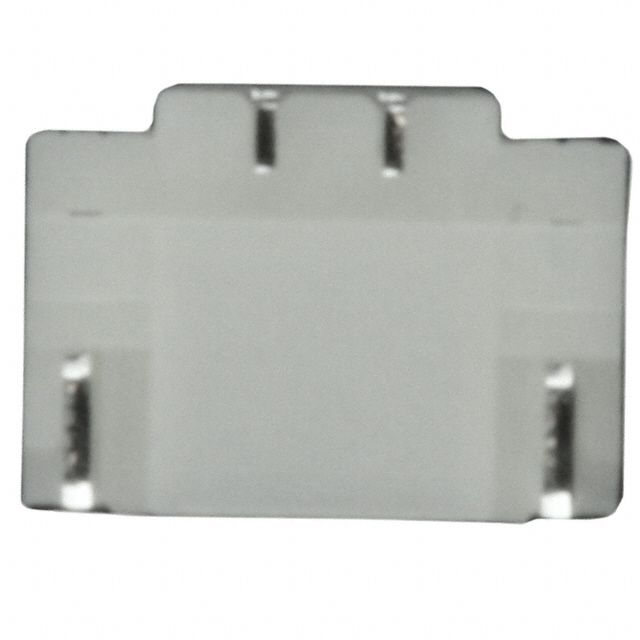

JST SM02BSURSTFLFSN Connector Header
This SUR Series 2-position connector header features a 0.8mm pitch with a side entry design, ideal for compact electronic assemblies. It has a shrouded 4-wall construction for enhanced security and reliable connections. The connector incorporates a push-pull locking mechanism for easy mating and unmating, and is suitable for surface mount soldering. Made with copper alloy contacts, tin-plated for durability, and encased in UL94V-0 rated PA housing, its compact form factor and high performance make it perfect for space-constrained electronic applications requiring robust electrical connections.
JST SM02BSURSTFLFSN Connector Header Specifications:
- Pitch: 0.8mm
- Number of Positions: 2
- Current Rating: 0.5A AC/DC for #32 wire, 0.2A AC/DC for #36 wire
- Voltage Rating: 30V DC
- Temperature Range: -25°C to +85°C
- Insulation Resistance: 100MΩ min
- Withstanding Voltage: 200V AC/minute
- Contact Material: Copper alloy, tin-plated
- Housing Material: PA, UL94V-0
- Design: Shrouded 4-wall construction, side entry
- Connection Type: Surface mount
- Locking Mechanism: Push-pull
- Applicable Wires: AWG #32, #36
- Insulation Diameter: 0.39mm
Buy the Ace Series SUR Connector: 0.8mm Pitch Side Entry Connector Header
Purchase the Ace Series SUR Connector Header online today and ensure your electronic projects benefit from a compact, reliable, and easy-to-mate connection solution. Featuring a 0.8mm pitch and side entry design, this connector is perfect for space-constrained applications. Its push-pull locking mechanism guarantees secure mating, while the high-quality tin-plated copper contacts provide excellent electrical performance. Made with UL94V-0 rated housing, it is compliant with RoHS standards, ensuring environmentally friendly usage. Upgrade your electronic assembly with this durable and versatile connector header available for quick online purchase today!
Get Ace SUR Series 2-position connector header today—designed for space-saving, reliable surface mount connections and long-lasting durability.
Frequently Asked Questions
Where can I buy JST SM02BSURSTFLFSN?
You can click on the BUY or RFQ button to purchase SM02BSURSTFLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SM02BSURSTFLFSN?
You can download the SM02BSURSTFLFSN datasheet or visit the JST website for support.
Who is the manufacturer of SM02BSURSTFLFSN?
JST
