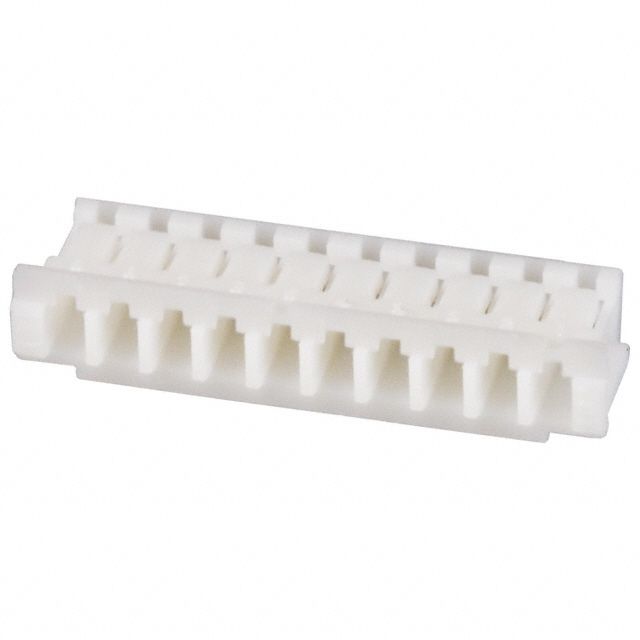

JST ZHR10 connector housing
This ZH Series 10-position connector housing, designed for 1.50 mm pitch connections, accommodates wires from AWG 32 to 26, supporting up to 50V AC/DC. It features a compact, low-height design with a mounting height of 5.6mm and a thickness of 3.5mm, making it ideal for space-constrained applications. The housing provides reliable contact retention with lances and a central dimple for secure post contact. Suitable for crimp style connection, it is RoHS compliant, with a natural finish and durable, distortion-resistant construction for long-term reliability.
JST ZHR10 connector housing Specifications:
- Current rating: 1.0A AC, DC (AWG #26)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/20mΩ max, after testing/30mΩ max
- Insulation resistance: 500MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable wire: AWG #32 to #26
- PC board thickness: 0.6 to 1.2mm, 1.6 mm
- Housing material: Phosphor bronze, tin-plated
- Contact material: Brass, tin-plated (reflow treatment)
- Housing: Free hanging, crimp termination, RoHS compliant
- Color: Natural (ivory)
- Pitch: 1.50 mm
- Mounting height: 5.6 mm
- Housing thickness: 3.5 mm
- Suitable for space-sensitive designs
- Compatible with ZR insulation displacement connectors
- Certification: Recognized E60389, Certified LR20812
