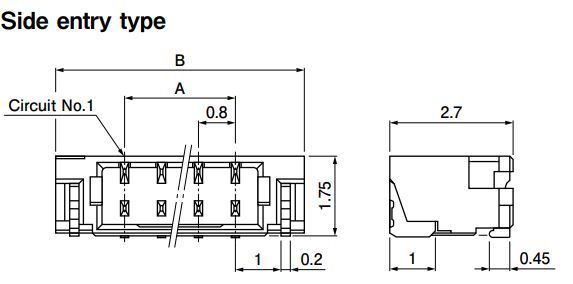

JST SM03BSURSTFLFSN Surface-mount Connector
This surface-mount right-angle connector header features 3 positions with a 0.8mm pitch, ideal for compact electronic devices. Designed for reliable surface-mount connections, it employs insulation displacement technology and has a rated current of 0.5A AC/DC for AWG #32 wires. Its high insulation resistance of 100MΩ and withstand voltage of 200V AC ensure safety and durability. Made with copper alloy contact plating and a UL94V-0 rated housing, it complies with RoHS standards, delivering sturdy, space-saving connectivity for modern electronic assemblies.
JST SM03BSURSTFLFSN Surface-mount Connector Specifications:
- Pitch: 0.8mm
- Positions: 3
- Current rating: 0.5A AC/DC (AWG #32), 0.2A (AWG #36)
- Voltage rating: 30V DC
- Temperature range: -25°C to +85°C
- Contact material: Copper alloy, tin-plated
- Housing: PA, UL94V-0
- Insulation O.D.: 0.39mm
- Insulation resistance: 100MΩ min.
- Withstanding voltage: 200V AC/min.
- Applicable wire: AWG #32, #36
- Conductor: 7 strands, tin-coated copper alloy
Buy the Buy Ace SUR Connector Part Number SM03BSURSTFLFSN Online
Discover the convenience of purchasing the Ace series SM03BSURSTFLFSN surface-mount connector online. Designed with a 0.8mm pitch and 3 positions, this connector offers reliable insulation displacement technology suitable for compact electronic designs. Its high insulation resistance and withstand voltage ensure safety and durability. Made from copper alloy with tin-plated contacts, it meets RoHS standards and is ideal for engineers needing space-saving, efficient wire-to-board connections. Order now to enhance your electronic assembly with trusted quality and quick delivery.
Order your Ace SeriesSM03BSURSTFLFSN surface-mount connector today and enjoy dependable, space-efficient electronic connections for your projects.
Frequently Asked Questions
Where can I buy JST SM03BSURSTFLFSN?
You can click on the BUY or RFQ button to purchase SM03BSURSTFLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SM03BSURSTFLFSN?
You can download the SM03BSURSTFLFSN datasheet or visit the JST website for support.
Who is the manufacturer of SM03BSURSTFLFSN?
JST
