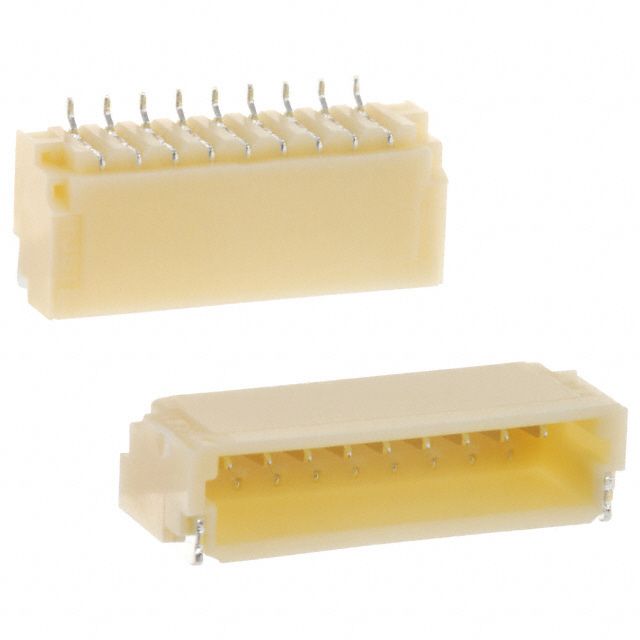

JST SM09BSRSSTBLFSN Connector Header
This 9-position side-entry surface mount connector header from the SR Series features a 1.00mm pitch and a tin-plated finish in natural color, ideal for compact electronic assemblies. Rated for 50V DC and 0.7A current, it provides reliable connection with RoHS compliance, suitable for applications requiring robust, space-efficient connectors. Its design ensures excellent contact resistance and insulation resistance, with withstand voltage of 500V AC. Suitable for PCB integration, it is perfect for robotics, automation, and electronics projects demanding dependable, miniature connectors.
JST SM09BSRSSTBLFSN Connector Header Specifications:
- Pitch: 1.00mm
- Number of Positions: 9
- Rating Voltage: 50V DC
- Current Rating: 0.7 A
- Contact Material: Tin-plated copper alloy
- Housing Material: PA, UL94V-0, natural
- Temperature Range: -25°C to +85°C
- Insulation Resistance: > 100MΩ
- Withstand Voltage: 500V AC/minute
- Applicable Wire: Conductor size/AWG #30, 7 strands, tin-coated annealed copper
- RoHS compliant
- Design Type: Surface mount, side entry
- Finish: Tin-plated
- Color: Natural
- Tolerances: Non-cumulative +0.05mm
Buy the JST 09SR-3S – Reliable Connectors for Robotics and Electronics
Purchase the JST 09SR-3S connector online today to ensure your electronic assemblies benefit from high-quality, reliable connectivity. This 9-position surface mount header features a 1.00mm pitch, rated for 50V DC with a current capacity of 0.7A, making it ideal for robotics, automation, and compact circuit designs. Its natural, tin-plated finish provides excellent corrosion resistance, and RoHS compliance ensures environmental safety. Secure your supply today and experience seamless installation and lasting performance in your projects.
Order your JST 09SR-3S connector today and enhance your electronic projects with dependable, miniature surface mount connectors designed for precise PCB integration.
Frequently Asked Questions
Where can I buy JST SM09BSRSSTBLFSN?
You can click on the BUY or RFQ button to purchase SM09BSRSSTBLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SM09BSRSSTBLFSN?
You can download the SM09BSRSSTBLFSN datasheet or visit the JST website for support.
Who is the manufacturer of SM09BSRSSTBLFSN?
JST
