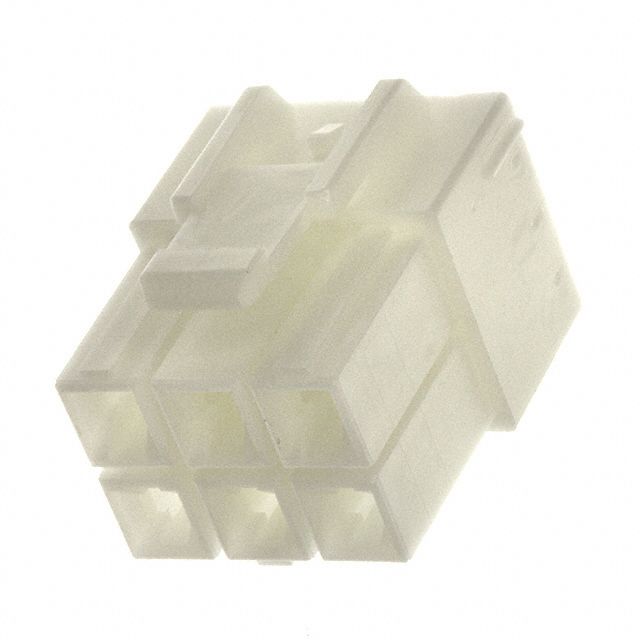

JST VLP06V Wire Connector Housing Lock
This white connector inner housing lock is designed for the VL Series, providing secure, reliable wire-to-wire and wire-to-board connections with a 6.2mm pitch. It supports wire sizes from 12 to 22 AWG and is rated for 600V and 120A AC/DC current. The lock features durable materials including copper-alloy with tin plating, UL94V-0 rated insulation, and complies with RoHS standards. Suitable for various circuit configurations, it ensures stable electrical contact, preventing disconnection or overheating during use, ideal for high-current applications in industrial and electronic assemblies.
JST VLP06V Wire Connector Housing Lock Specifications:
- Current rating: 120A AC, DC
- Voltage rating: 600V AC, DC
- Temperature range: -25°C to +90°C
- Contact resistance: Initial/7mΩ max, environmental testing/10mΩ max
- Insulation resistance: 1,000MΩ min
- Withstanding voltage: 2,000V AC/minute
- Applicable wire: AWG #22 to #12
- Applicable PC board thickness: 1.6mm
- Material: Copper-alloy, tin-plated
- Housing material: PA 66, UL94V-0
- RoHS compliant
- Dimensions: 62mm width, 13.4mm height, 100mm length for various circuit configurations
Buy the JST Series VL Connector: VLP06V
Purchase the JST VL Series VLP06V connector housing lock online today to ensure robust, reliable wire-to-wire or wire-to-board connections. Crafted with durable copper-alloy and UL94V-0 rated insulation, this lock supports up to 600V and 120A current, making it ideal for industrial electronics and high-current device assemblies. Its compact design fits various circuit configurations, offers easy installation, and guarantees electrical stability. Order now to enhance your electronic or industrial projects with trusted, high-quality components designed for long-lasting performance and safety.
Get JST VL Series VLP06V connector housing lock today—built for secure, high-current connections in industrial applications.
Frequently Asked Questions
Where can I buy JST VLP06V?
You can click on the BUY or RFQ button to purchase VLP06V from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part VLP06V?
You can download the VLP06V datasheet or visit the JST website for support.
Who is the manufacturer of VLP06V?
JST
