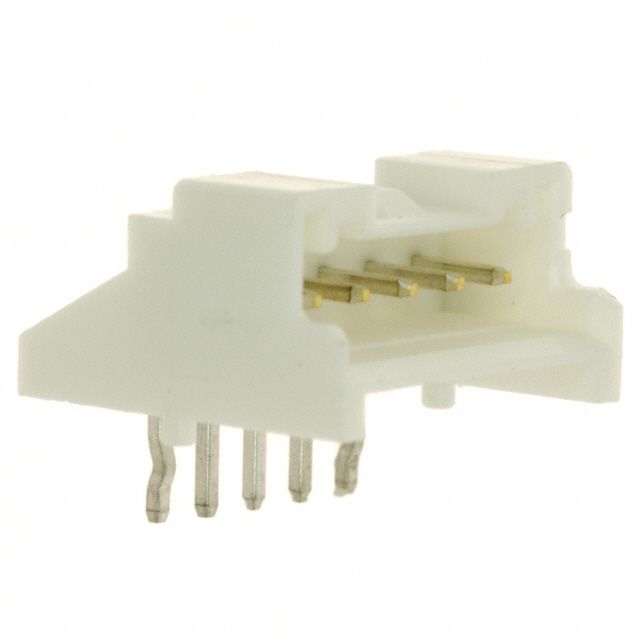

JST S05BPASK2LFSN Connector Header
This PA Series side-entry connector header features a 2.0mm pitch with five positions, designed for reliable electronic connections. Made from UL94V-0 rated PA 66, it offers excellent durability with copper alloy post, tin-plated for corrosion resistance, and a glass-filled PBT insulator. It complies with RoHS standards, ensuring environmentally friendly manufacturing. Suitable for high-density assemblies, it features a bottom type and through-hole mounting with dimension-specific configurations for customized integration. Ideal for PCB applications requiring robust and efficient terminal connections.
JST S05BPASK2LFSN Connector Header Specifications:
- Material: Post made of copper alloy, copper-undercoated, tin-plated; Housing of glass-filled PBT, UL94V-0; Solder tab of copper alloy, tin-plated
- Current rating: 3A AC, DC (AWG #22)
- Voltage rating: 250V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/ 10mΩ max; After environmental testing/ 20mΩ max
- Insulation resistance: Minimum 1,000MΩ
- Withstanding voltage: 800V AC for 1 minute
- Applicable wire: AWG #28 to #22
- Applicable PCB thickness: Typically 1.6mm
- Dimensions: Length varies with model, hole diameter and pitch specifically designed for PCB mounting
- RoHS compliant, RoHS5.0 certified
Buy the JST Series PA Connector: 2.0mm Pitch Five-Position Through-Hole Header
Enhance your electronic projects with our JST Series PA connector header. Featuring a 2.0mm pitch, five positions, and RoHS compliance, this reliable through-hole component ensures secure connections on PCBs. Made of UL94V-0 rated PA 66, with copper alloy posts tin-plated for durability, it offers excellent electrical performance. Easy to install thanks to its precise dimensions and high-quality insulator, it is suitable for a variety of applications requiring robust and environmentally friendly connectors. Shop now for quick online delivery and superior performance in your next project.
Order your JST Series PA connector header with 2.0mm pitch today and give your projects the dependable quality they deserve, ensuring reliable electrical connections in your PCB assemblies.
Frequently Asked Questions
Where can I buy JST S05BPASK2LFSN?
You can click on the BUY or RFQ button to purchase S05BPASK2LFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part S05BPASK2LFSN?
You can download the S05BPASK2LFSN datasheet or visit the JST website for support.
Who is the manufacturer of S05BPASK2LFSN?
JST
