JST WPJR03V2R waterproof connector
The WPJ Series waterproof connector receptacle with 3 positions offers a compact and durable solution for electrical connections in harsh environments. It supports 22-18 AWG wires with insulation diameters ranging from 1.52 to 2.83 mm. Featuring a control key system, it ensures secure and reliable engagement. The connector has a water-resistant design rated at IPX7, suitable for both waterproof and non-waterproof conditions, and is made of glass-filled PBT with tin-plated copper contacts for excellent corrosion resistance. Its compact form factor makes it ideal for a variety of industrial, automation, and electronic applications requiring dependable water protection and easy installation.
JST WPJR03V2R waterproof connector Specifications:
- Current rating: 7 A AC, DC (AWG #18)
- Voltage rating: 300 V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/10 mΩ max, after environment/20 mΩ max
- Insulation resistance: 1,000 MΩ min
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #22 to #18, insulation O.D. 2.32 to 2.83 mm
- Waterproof grade: IPX7 JIS C 0920
- Materials: Copper alloy, tin-plated, glass-filled PBT housing, silicon seals

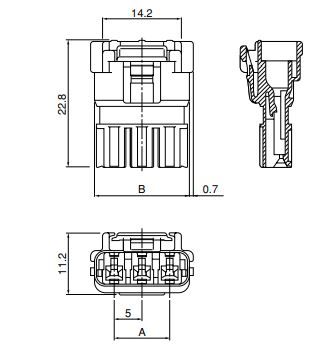

- Dimensions: Supports wire insulation diameters from 1.52 to 2.83 mm and contact configurations of 2 or 3 circuits
Buy the Buy JST Waterproof Water-Resist Connector Part Number WPJR03V2R Online
Purchase the JST waterproof connector online today to guarantee secure and water-resistant electrical connections. Ideal for harsh environments, this connector features a compact design, reliable contact system, and supports 22-18 AWG wires. Its IPX7 rating ensures protection against water ingress, making it suitable for automation, industrial, and electronic applications. With durable materials and an easy-to-use locking system, this connector delivers excellent performance and longevity. Order now to streamline your wiring and safeguard your equipment with trusted quality.
Order your JST Waterproof WPJ Series 3-Position Connector today and ensure reliable, water-resistant connections for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy JST WPJR03V2R?
You can click on the BUY or RFQ button to purchase WPJR03V2R from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part WPJR03V2R?
You can download the WPJR03V2R datasheet or visit the JST website for support.
Who is the manufacturer of WPJR03V2R?
JST
