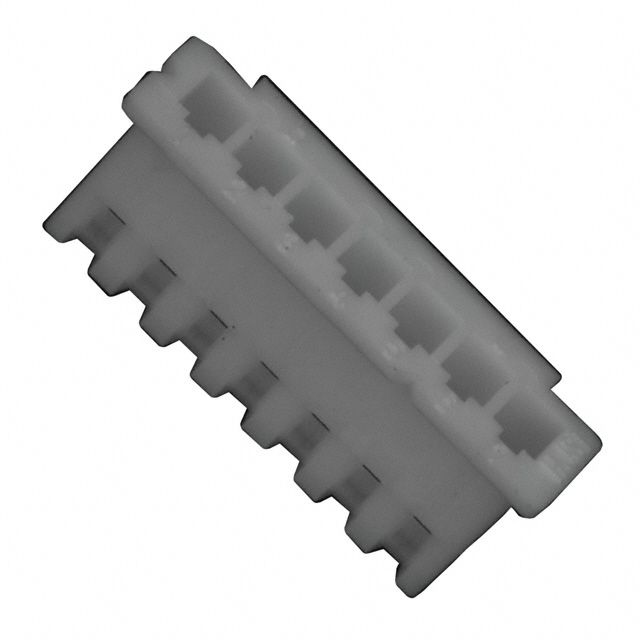

JST XHP7 Connector Housing
This is a high-quality connector housing from the XH series, designed for reliable in-line connections with a 2.50mm pitch. Rated for 250V and compatible with 30-22 AWG wires, it features a natural color and robust construction to ensure stable electrical connections in electronic assemblies. Suitable for various applications, including board-to-board and wiring harnesses, this connector offers easy assembly and interchangeability with related JST components, making it ideal for industrial and electronic device manufacturing.</br></br>It adheres to RoHS standards and conforming to international connectors’ certifications, providing safety and compliance in electronic systems. The housing is engineered for durability under operational temperatures and environmental conditions, ensuring long-lasting data and power transmission in complex electronic systems.
JST XHP7 Connector Housing Specifications:
- Pitch: 2.50mm
- Rated Voltage: 250V AC/DC
- Wire Range: AWG 30-22
- Applicable Wire Diameter: 0.13~0.33mm
- Material: Housing - Polyamide (PA66), Water - Glass-filled PA66, UL94V-0, natural (white)
- Material Finishes: Post - Copper alloy, tin-plated, reflow treatment; Water - UL94V-0, glass-filled PA66
- Number of Circuits: 7
- Dimensions: Not specified but designed to fit 2.50mm pitch connectors
- Temperature Range: -25°C to +85°C
- Insulation Resistance: 1,000 MΩ min.
- Withstanding Voltage: 1,000V AC/min
- RoHS Compliant: Yes
- Interchangeability: With similar JST XH series headers
- Standards: RoHS, UL94V-0
- Applicable Board Thickness: 1.6mm
Buy the Buy JST XH Series Connector Housing Part Number XHP7 Online
Order the JST XH Series connector housing XHP7 online today for your electronic assembly needs. Featuring a 2.50mm pitch, rated for 250V, suitable for 30-22 AWG wires, and made from durable materials for long-term reliability. Its natural color ensures clarity in wiring and easy inspection. Compatible with other JST headers and conforming to RoHS standards, this connector housing provides secure connections for industrial, consumer, and electronic device applications. Perfect for engineers and technicians seeking quality and dependability in wiring solutions, buy now for fast delivery and exceptional performance.
Get JST XH Series connector housing XHP7 today—designed for in-line, reliable, and long-lasting electronic connections.
Frequently Asked Questions
Where can I buy JST XHP7?
You can click on the BUY or RFQ button to purchase XHP7 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part XHP7?
You can download the XHP7 datasheet or visit the JST website for support.
Who is the manufacturer of XHP7?
JST
