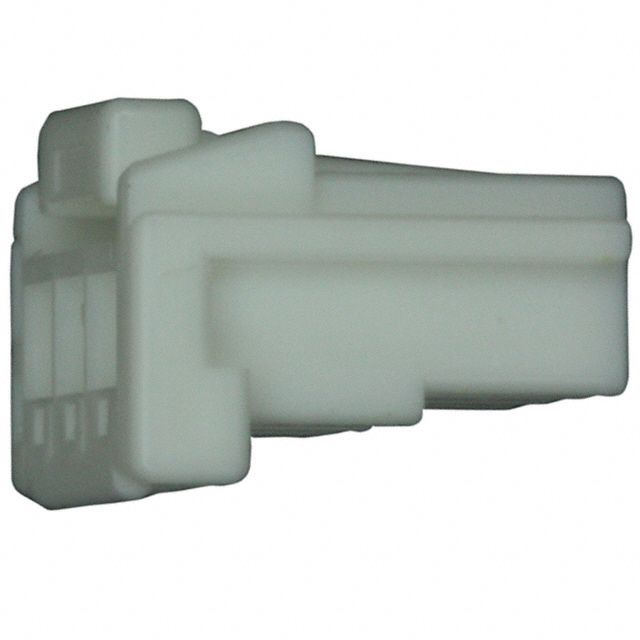

JST ZER03VS female socket connector
This is a ZE Series 3-position female socket connector receptacle designed for free-hanging installation. It features a 1.5mm pitch suitable for 30-24 AWG wires, with crimp termination and a voltage rating of 100V. The connector has a natural finish, copper alloy contact material with tin plating, and complies with RoHS standards. It is suitable for applications requiring reliable secure locking and stable contact resistance, making it ideal for compact electronic assemblies needing easy wire connection and removal.
JST ZER03VS female socket connector Specifications:
- Current rating: 2A AC, DC (AWG #24)
- Voltage rating: 100V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/20mΩ max, environmental/40mΩ max
- Insulation resistance: 500MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable wire: AWG #30 to #24, insulation O.D. 0.8 to 1.2mm
- Material: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Connector type: Female socket, crimp termination
- RoHS compliance: Yes
- Finish: Natural
- Standards: E60389 Recognized
Buy the JST ZE Series Connector: 3-Position Female Socket ZER03VS
Purchase the JST ZE Series 3-position female socket connector online today for dependable electrical connections in compact electronic devices. Designed with a 1.5mm pitch, it ensures secure and stable contact with crimp termination for simplified wiring. Made from high-quality copper alloy with tin plating and RoHS compliant, this connector offers excellent durability and environmental safety. Perfect for applications demanding precise fitting, easy installation, and robust performance, this connector achieves optimal electrical conductivity and reliable operation in various industrial and consumer electronics.
Buy JST ZE Series 3-position female socket connector now and experience reliable connectivity with secure locking and high-quality materials.
