Johnson-Cinch Connectivity Solutions 1050804001 Insulated Tip Jack

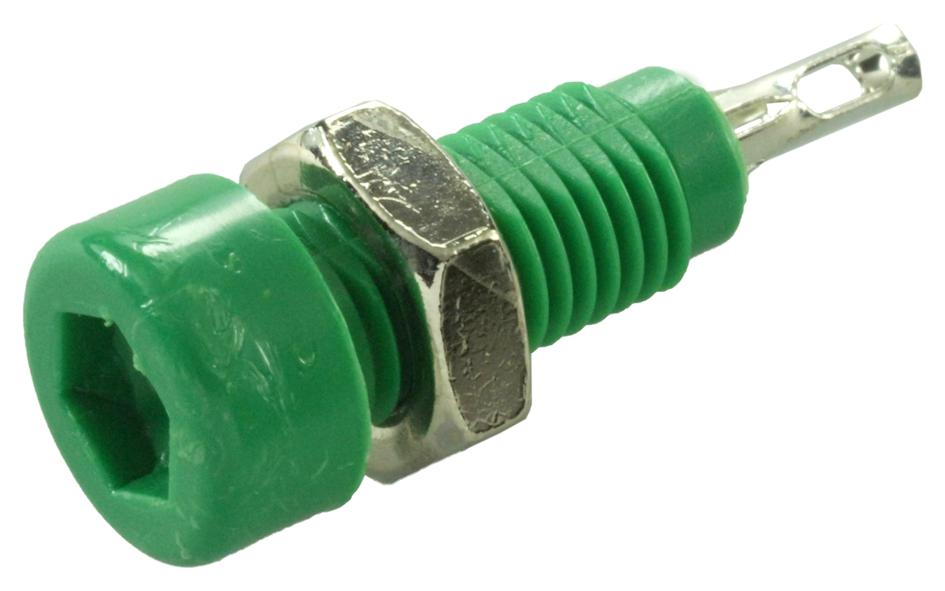

The tip jack is a green insulated standard model designed for reliable electrical connections in test and measurement applications. Constructed with bright-tin phosphor bronze contacts, it ensures excellent conductivity and corrosion resistance. The nylon 6/6 body is UL-approved and self-extinguishing, providing safety during operation. It features a formed contact with a slotted terminal and a hex socket head of 0.188 inches (4.77 mm) for straightforward mounting. Compatible with 0.08-inch tip plugs, it accommodates panel thicknesses up to 0.437 inches, offering dependable performance in demanding environments.
Johnson-Cinch Connectivity Solutions 1050804001 Insulated Tip Jack Specifications:
- Contact Material: Phosphor bronze per QQ-B-750
- Finish: Bright tin
- Body Material: Nylon 6/6 per ASTM D4066
- Hardware: Nickel plated nut (unassembled)
- Body Thread Stripping Torque: 4.0 Ib. in. (4.5kg. cm.)
- Panel Thickness: Up to 0.437 inches (11.10 mm)
- Current Rating: 10 amps
- Breakdown Voltage: 5700 Vrms minimum
- Contact Resistance: 0.010 ohms maximum
- Contact-to-Panel Capacitance: 2 pF nominal
- Tip Diameter: 0.080 inches (2.00 mm)
- Mounting Hole Size: 0.188 inches (4.77 mm)
- Self-extinguishing: Yes, UL-approved nylon
- Connector Type: Standard tip jack
- Contact Feature: Formed contact with slotted terminal
- Hex Socket Head Size: 0.188 inches (4.77 mm)
Buy the Cinch Tip Jack – Reliable Insulated Tip Connectors for Industrial Applications
Purchase the Cinch Insulated Tip Jack today and ensure high-quality electrical connections in your test and measurement setups. Featuring bright-tin phosphor bronze contacts and a UL-approved nylon body, this jack provides safety, durability, and reliable performance. Its easy-mount hex socket head and compatibility with 0.08-inch tips make it suitable for various industrial applications. Up to 0.437 inches panel thickness, rated at 10 amps with a breakdown voltage of 5700 Vrms, it’s the perfect choice for precise, stable connections in demanding environments.
Order your Cinch Tip Jack 1050804001 today and enhance your testing and measurement projects with dependable, easy-to-mount connectivity solutions.
