Johnson-Cinch Connectivity Solutions 1050807001 Insulated Tip Jack

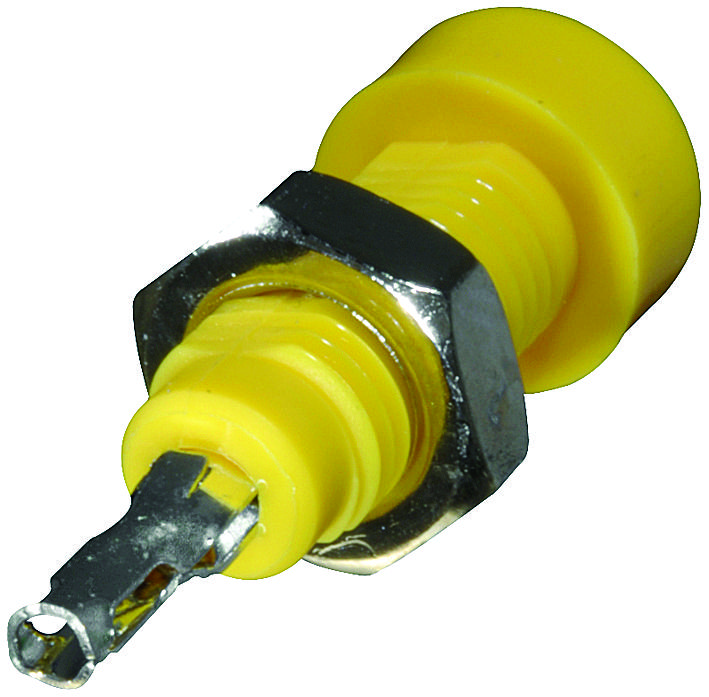

The yellow insulated standard tip jack 105-0807-001 features a bright-tin phosphor bronze contact and a nylon 6/6 body, ensuring durability and safety. Designed for 0.08-inch standard tip plugs, it includes a formed contact with a slotted terminal for reliable connections, and a hex socket head (0.188-inch) for easy installation. UL-approved for self-extinguishing, it supports panel thicknesses up to 0.437 inches. Ideal for test, measurement, and electronic connectivity applications, providing excellent electrical performance and mechanical robustness.
Johnson-Cinch Connectivity Solutions 1050807001 Insulated Tip Jack Specifications:
- Contact Material: Phosphor bronze per QQ-B-750
- Finish: Bright tin
- Body Material: Nylon 6/6 per ASTM D4066
- Hardware: Nickel plated nut (unassembled)
- Body Thread Stripping Torque: 4.0 Ib. in. (4.5kg. cm.)
- Panel Thickness: Up to 0.437 inches (11.10 mm)
- Current Rating: 10 amps
- Breakdown Voltage: 5700 Vrms minimum
- Contact Resistance: 0.010 ohms maximum
- Contact-To-Panel Capacitance: 2 pF nominal
- Insulation: UL-approved self-extinguishing nylon
- Tip Diameter: 0.080 inches (2.00 mm)
- Mounting Feature: Hex socket head 0.188 inches (4.77 mm)
- Dimensions: Diameter 0.266 inches (6.76 mm), Length 0.375 inches (9.53 mm)
Buy the Buy Cinch Connectivity Solutions Tip Jack Part Number 1050807001 Online
Purchase the Cinch Connectivity Solutions Insulated Tip Jack, Part Number 1050807001, online today to ensure dependable electrical connections. This yellow insulated jack features a phosphor bronze contact with a bright tin finish for excellent conductivity and corrosion resistance. Its nylon 6/6 body offers durability and UL approval for self-extinguishing safety standards. Designed to fit panel thicknesses up to 0.437 inches, it includes a hex socket head for easy mounting and a slotted terminal contact for secure connections. Ideal for test, measurement, and electronic equipment, this connector provides reliable performance and easy installation for professionals and hobbyists alike.
Order your Cinch Connectivity Solutions Series1050807001 insulated tip jack today and enhance your electronic connectivity with reliable, UL-approved performance.
