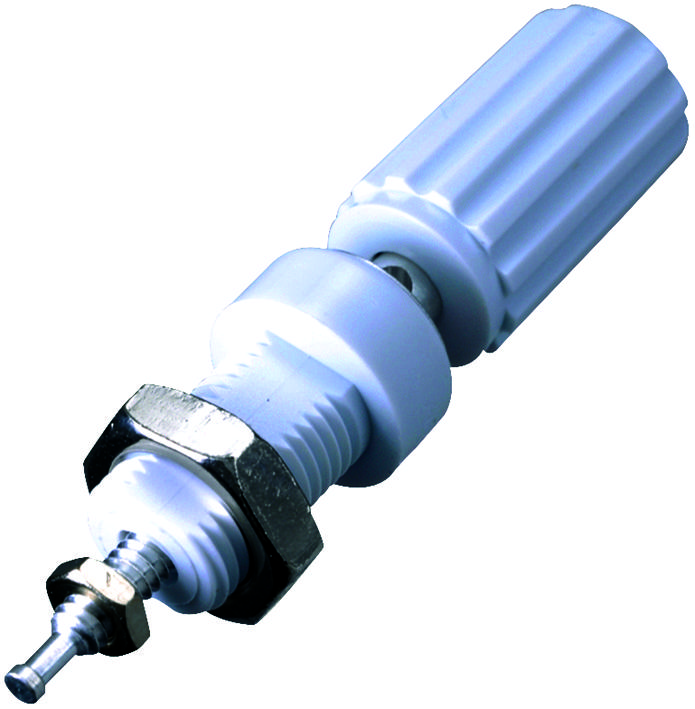

Johnson-Cinch Connectivity Solutions 1110101001 Insulated Binding Post
The 111-0101-001 is a white-insulated binding post with a silver-plated brass body and nylon 6/6 insulation, meeting ASTM D4066 standards. Its fully insulated nylon design features a flattened body to prevent turning during installation. Equipped with a metal turret terminal, it can withstand a thread stripping torque of 6.0 lb.in. for panel thicknesses up to 7.15 mm. Rated for 15A current, it offers a maximum contact resistance of 0.010 ohms, a breakdown voltage of at least 5700 Vrms, and includes a captive thumb nut for secure connections. UL-approved and self-extinguishing, ideal for aerospace, defense, and signal processing applications.
Johnson-Cinch Connectivity Solutions 1110101001 Insulated Binding Post Specifications:
- Stud Material: Brass per QQ-B-626D
- Finish: Silver
- Insulating Material: Nylon 6/6 per ASTM D4066
- Hardware: Nickel plated nut
- Body Thread Stripping Torque: 6.0 lb.in (7.0 kg.cm)
- Panel Thickness Compatibility: Up to 7.15 mm
- Current Rating: 15 amps
- Contact Resistance: 0.010 ohms maximum
- Breakdown Voltage: 5700 Vrms minimum
- Stud-to-Panel Capacitance: 3.3 pF nominal
- Insulated Body: Flatted to prevent turning, UL approved
- Features: Turret terminal, captive thumb nut
- Dimensions: Diameter for standard banana plug .175 inches (4.44 mm), mounting hole layout available
- Cable Connection Diameter: .175 inches (4.44 mm)
Buy the Buy Abbel Group Binding Post Part Number 1110101001 Online
Purchase the Abbel Group insulated binding post online today and ensure secure, durable electrical connections. Designed with a silver-plated brass body and UL-approved nylon insulation, it is rated for 15A current, with a high breakdown voltage of at least 5700 Vrms. Its flat body prevents turning during installation, and the turret terminal provides reliable contact. Ideal for aerospace, defense, and signal processing applications, this high-quality, self-extinguishing component offers excellent electrical performance and long-lasting durability for demanding environments.
Get Abbel Group 1110101001 today—built for secure and reliable electrical connections in aerospace, defense, and signal processing.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1110101001?
You can click on the BUY or RFQ button to purchase 1110101001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1110101001?
You can download the 1110101001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1110101001?
Johnson-Cinch Connectivity Solutions
