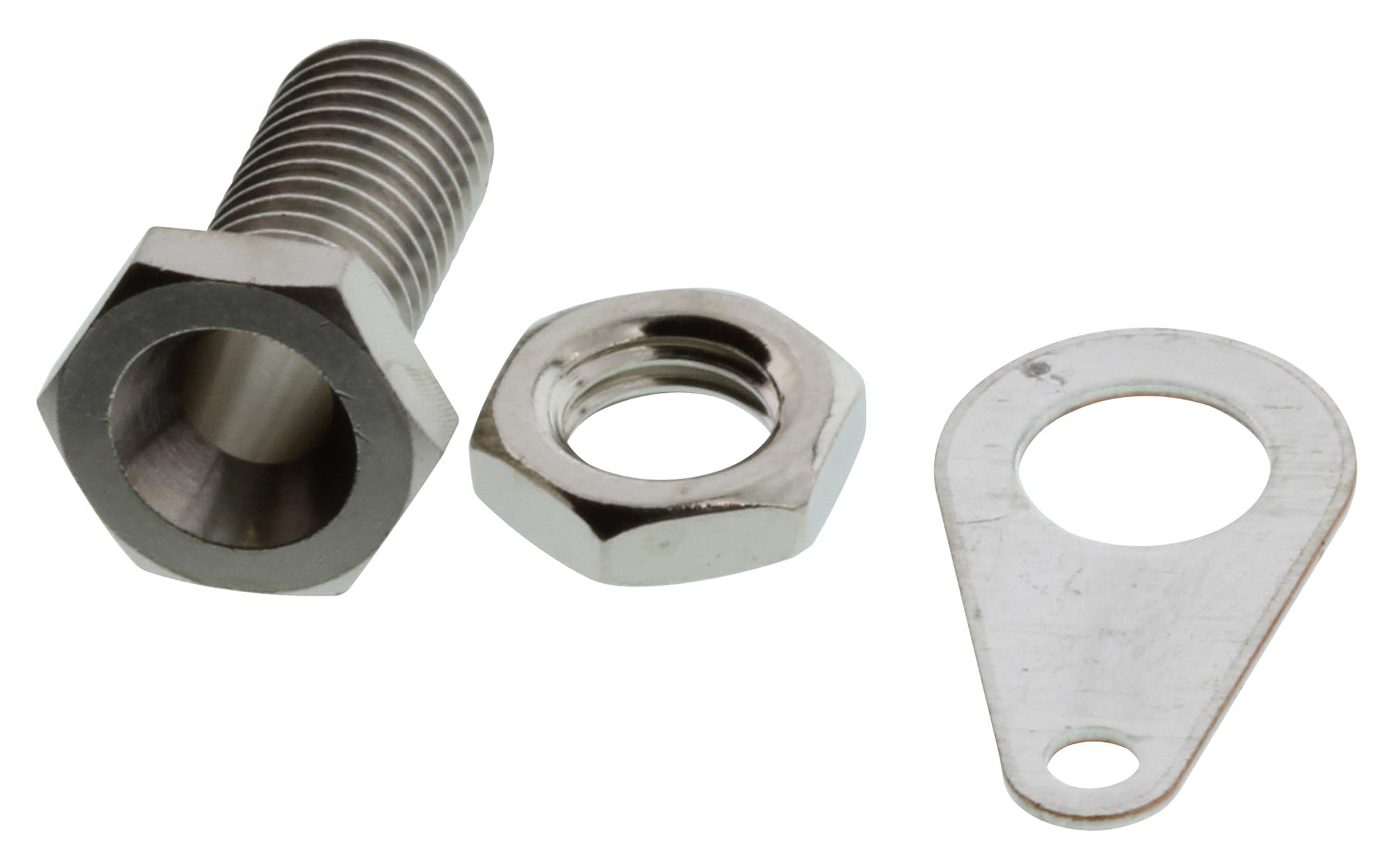

Johnson-Cinch Connectivity Solutions 1080740001 Banana Jack connector
The Banana Jack is made of brass according to QQ-B-626D standards, with a nickel-plated finish. This panel-mounted, uninsulated, standard pierced lug terminal features a hex head for faster installation, supports solder termination, and accepts wire sizes up to 12 gauge. It is suitable for high-current applications, supporting 15 amps with a contact resistance of 0.010 ohms maximum. Designed for reliable electrical connectivity, the jack is ideal for panel mounting and connects securely with banana plugs, ensuring durability and ease of installation in various testing and measurement setups.
Johnson-Cinch Connectivity Solutions 1080740001 Banana Jack connector Specifications:
- Jack Body: Brass per QQ-B-626D
- Finish: Nickel
- Hardware: Nickel plated nut, stamped tin plated S094 aN 5310544, solder terminal (unassembled)
- Panel Thickness: Up to 0.375 inch (9.52 mm)
- Current Rating: 15 amps
- Contact Resistance: 0.010 ohms maximum
- Panel Mounting: Standard pierced lug terminal
- Hole Size: Supports wire up to 12 gauge
- Across Flats for standard banana plug: 0.175 inch (4.44 mm)
- Features: Hex head for faster installation
Buy the Buy Cinch Connectivity Solutions Banana Jack Part Number 1080740001 Online
Purchase the Cinch Connectivity Solutions Banana Jack connector online to ensure dependable electrical connectivity for your high-current applications. Crafted from brass and coated with nickel for durability, it features a hex head for quick installation and supports wire sizes up to 12 gauge. Suitable for panel mounting, this uninsulated pierces lug terminal offers low contact resistance, making it ideal for testing, measurement, and automation setups. Secure yours today for reliable, efficient connections in demanding environments.
Buy Cinch Connectivity Solutions 1080740001 now and experience unmatched reliability and high-current performance with easy installation.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1080740001?
You can click on the BUY or RFQ button to purchase 1080740001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1080740001?
You can download the 1080740001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1080740001?
Johnson-Cinch Connectivity Solutions
