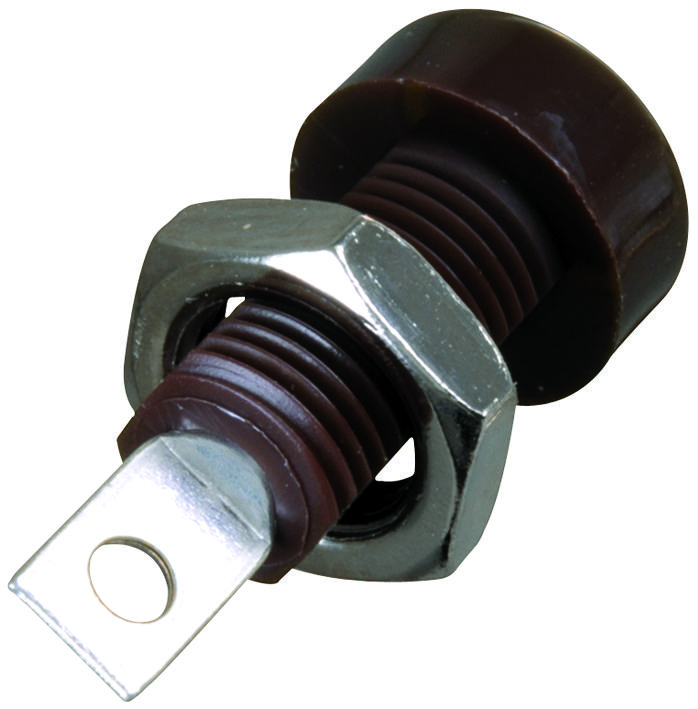

Johnson-Cinch Connectivity Solutions 1080908001 Banana Jack Insulated
The Banana Jack offers a panel mount design with durable brown nylon 6/6 insulation and bright tin-plated brass contacts for reliable electrical connection. It features insulated solder terminals, keyed mounting with double flats for secure installation, and accepts wires up to 16 gauge. Supplied with nickel-plated hardware, it provides a low contact resistance of approximately 0.01 ohms. The nylon material is UL-approved for self-extinguishing properties, making it ideal for test, measurement, and signal testing applications in industrial and electronic systems.
Johnson-Cinch Connectivity Solutions 1080908001 Banana Jack Insulated Specifications:
- Contact Material: Brass per QQ-B-626D
- Finish: Bright tin
- Body: Nylon 6/6 per ASTM D4066
- Hardware: Nickel plated nut
- Body Thread Stripping Torque: 6.0 Ib. in. (7kg. cm.)
- Panel Thickness: Up to .343 inches (8.80 mm)
- Current Rating: 15 amps
- Breakdown Voltage: 7000 V minimum
- Contact Resistance: 0.010 ohms maximum
- Contact-To-Panel Capacitance: 2.4 pF nominal
- Accepts wire gauge: Up to 16
- Insulation Material: Nylon 6/6 UL approved for self-extinguishing
- Panel Mounting: Keyed with double flats
- Mounting Hole Layout Dimensions: Approximately 0.175 inches (4.44 mm) across flats
Buy the Cinch Series Banana Jack: 1080908001
Order the Cinch series Banana Jack now and enjoy dependable connections for your testing and measurement setups. Featuring durable nylon insulation and bright tin-plated brass contacts, this panel mount jack supports wires up to 16 gauge with secure keyed double flats. Its UL-approved nylon ensures safety from self-extinguishing hazards, making it ideal for professional electronic and industrial environments. With low contact resistance and rated for 15 amps, this Banana Jack guarantees long-lasting, reliable performance for your electrical connections. Purchase online today for prompt delivery and quality assurance.
Buy Cinch series Banana Jack 1080908001 now and experience unmatched reliability and performance in test and measurement applications.
