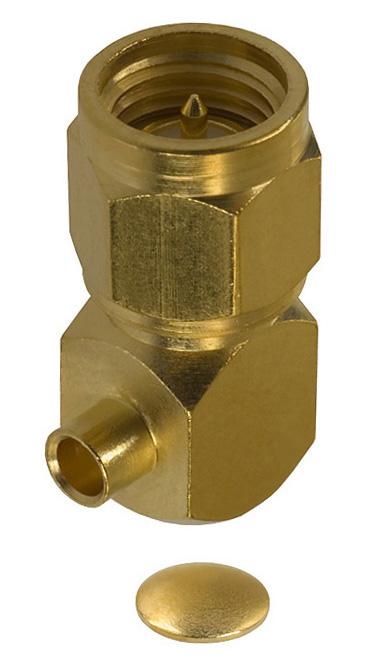

Johnson-Cinch Connectivity Solutions 1420693101 SMA Right Angle Connector
The 142-0693-101 is a solder SMA right angle plug designed for use with 0.086-inch semi-rigid RF coaxial cables. It features a gold-plated brass body, gold-plated contacts, and a PTFE insulator. This connector is suitable for RF communications, industrial applications, and 5G wireless systems, providing reliable high-frequency performance up to 12.4 GHz. It includes precise soldering instructions, a durable construction with brass and PTFE materials, and adheres to MIL standards for engagement and environmental resilience, making it ideal for professional RF setups.
Johnson-Cinch Connectivity Solutions 1420693101 SMA Right Angle Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: 0-12.4 GHz
- VSWR: 1.15 + .04f (12.4-18 GHz)
- Material: Brass body, gold plated
- Center Contact: Brass, gold plated
- Insulator: PTFE fluorocarbon
- Connector Type: SMA right angle plug
- Cable Compatibility: 0.086-inch semi-rigid
- Working Voltage: 500 VRMS at sea level
- Dielectric Withstanding Voltage: 500 VRMS
- Insertion Loss: 0.06 dB at 6 GHz
- Environmental Ratings: MIL standards for temperature, corrosion, shock, vibration
- Durability: 500 cycles minimum
- Mating Torque: 7 to 10 inch-pounds
- Bulkhead Mounting Nut Torque: 15 inch-pounds
