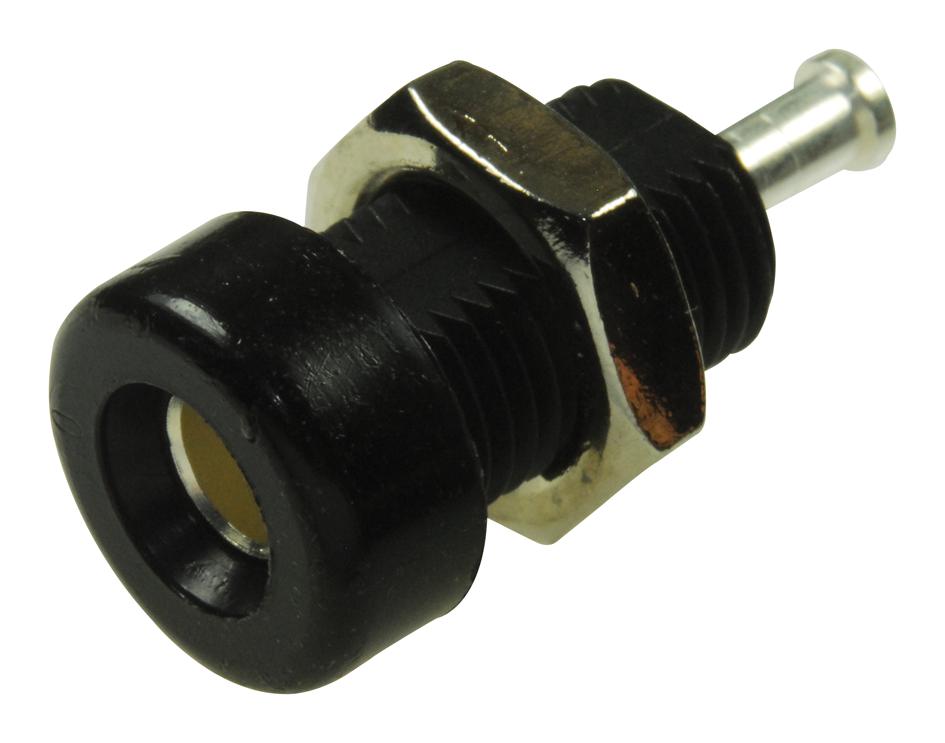

Johnson-Cinch Connectivity Solutions 1082303621 banana jack connector
The black insulated turret terminal Banana Jack features a keyed-mounting design with double flats for secure attachment. Made from UL-approved nylon 6/6, it ensures safety with self-extinguishing properties. The machined brass contacts with a silver finish provide reliable connectivity, complemented by nickel-plated hardware. It has a body thread stripping torque of 6 lb-inch, a contact-to-panel capacitance of 2.4 pF, and a maximum contact resistance of 0.01 ohms, suitable for industrial and electronic applications requiring durable, safe connections.
Johnson-Cinch Connectivity Solutions 1082303621 banana jack connector Specifications:
- Material: Nylon 6/6, UL approved for self-extinguishing safety
- Contact Material: Machined brass with silver finish
- Finish: Silver-plated contacts
- Hardware: Nickel-plated nut (unassembled)
- Body Thread Stripping Torque: 6 lb-inch (7 kg·cm)
- Panel Thickness: Up to 0.343 inches (8.80 mm)
- Mounting: Keyed with double flats, across flats approximately 0.175 inches (4.44 mm)
- Contact Resistance: 0.010 ohms maximum
- Contact-to-Panel Capacitance: 2.4 pF nominal
- Breakdown Voltage: 7000 Vrms minimum
- Current Rating: 15 amps
- Maximum Panel Thickness: 0.343 inches (8.80 mm)
Buy the Cinch Series Banana Jack: 1082303621
Purchase the Cinch banana jack connector online today and enjoy high-quality, secure connection points for your industrial and electronic projects. Its nylon body with UL approval, silver-plated brass contacts, and keyed mounting design ensure safety, durability, and reliable electrical performance. Perfect for applications requiring robust and safe connections, this connector offers ease of installation with a body thread stripping torque of 6 lb-inch, maximum contact resistance of 0.01 ohms, and capacitance of 2.4 pF. An excellent choice for safety-conscious engineers and technicians.
Buy Cinch 1082303621 now and experience unmatched reliability and performance in industrial connectivity solutions.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1082303621?
You can click on the BUY or RFQ button to purchase 1082303621 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1082303621?
You can download the 1082303621 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1082303621?
Johnson-Cinch Connectivity Solutions
