Johnson-Cinch Connectivity Solutions 1110103001 Binding Post

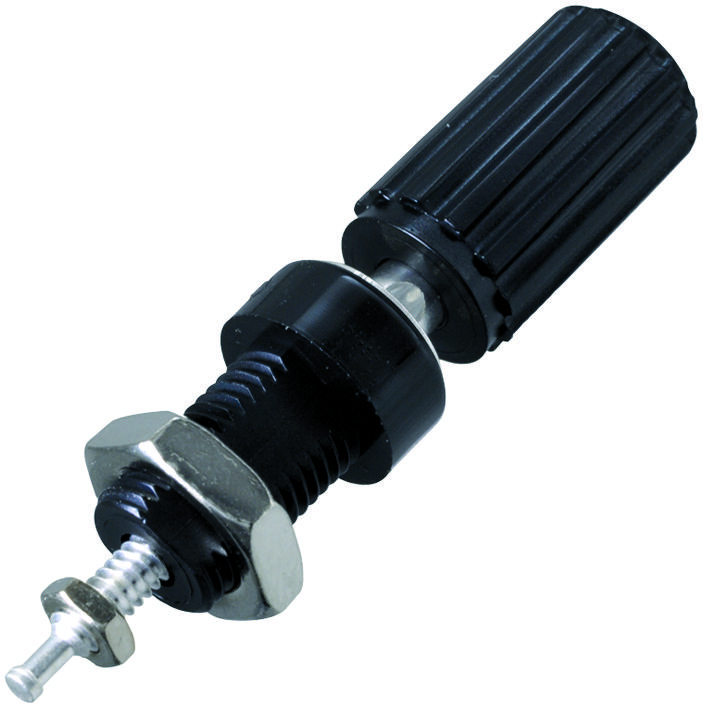

The black insulated binding post features a silver-plated brass body with nylon 6/6 insulation, meeting ASTM D4066 standards. The fully insulated nylon construction prevents common design issues, with the nylon being flattened to prevent turning. It includes a turret terminal, and its threaded nylon body withstands torque up to 6.0 lb-in (7 kg·cm) for panel thicknesses up to 7.15 mm. Rated for 15A, it has a contact resistance of 0.010 ohms and breakdown voltage of 5,700 Vrms. The stud-to-panel capacitance is 3.3 pF, making it ideal for aerospace, military, and signal processing applications.
Johnson-Cinch Connectivity Solutions 1110103001 Binding Post Specifications:
- Stud Material: Brass per QQ-B-626D
- Finish: Silver
- Insulating Material: Nylon 6/6 per ASTM D4066
- Body Thread Stripping Torque: 6.0 Ib. in. (7.0 kg·cm)
- Panel Thickness: Up to 0.281 inches (7.15 mm)
- Current Rating: 15 amps
- Contact Resistance: 0.010 ohms maximum
- Breakdown Voltage: 5700 Vrms minimum
- Stud-to-Panel Capacitance: 3.3 pF nominal
- Thread Size: 4-40 UNC-24, 5/16-32 UNEF-2A
- Maximum Panel Thickness: 0.29 inches (7.37 mm)
- Mounting Hole Diameter: 0.086 inches (2.18 mm)
- Features: Turret terminal, captive thumb nut, nylon body, UL approved self-extinguishing nylon
- Suitable For: Defense, military, aerospace, signal processing applications
Buy the Buy Cinch Connectivity Solutions Binding Post Part Number 1110103001 Online
Order the Cinch Connectivity Solutions binding post online today for your aerospace, military, and signal processing needs. Featuring a silver-plated brass body and nylon insulation, this durable binding post provides excellent electrical performance with a maximum current of 15A. Its UL-approved self-extinguishing nylon body and turret terminal design ensure safe, reliable connections. Whether used in defense applications or aerospace systems, this insulated binding post offers ease of installation with captive thumb nut, flat nylon body for secure mounting, and high breakdown voltage of 5,700 Vrms. Invest in quality connectivity solutions today.
Get Cinch Connectivity Solutions 1110103001 today—built for precision, reliability, and aerospace-grade insulation.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1110103001?
You can click on the BUY or RFQ button to purchase 1110103001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1110103001?
You can download the 1110103001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1110103001?
Johnson-Cinch Connectivity Solutions
