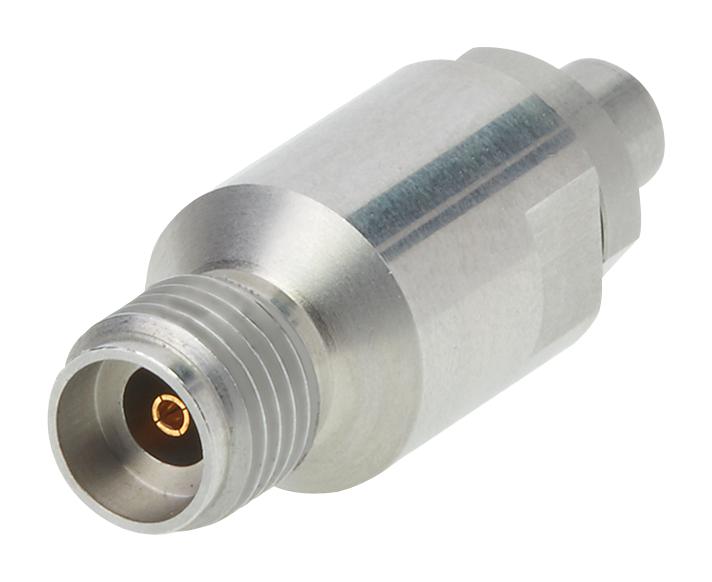

Johnson-Cinch Connectivity Solutions 1341000001 2.92mm RF Adapter
The 134-1000-001 2.92 mm SMK series inter-series adapter is designed for high-frequency applications, providing reliable connections up to 40 GHz. It features a 50-ohm impedance and is suitable for RF communications, industrial use, and 5G wireless systems.
Johnson-Cinch Connectivity Solutions 1341000001 2.92mm RF Adapter Specifications:
- Impedance: 50 ohms
- Frequency Range: 0-40 GHz
- VSWR: 1.30 Max at 26.5 GHz
- Working Voltage: 335 Vrms at sea level
- Dielectric Withstanding Voltage: 500 Vrms minimum
- Insulation Resistance: 5000 Megohms minimum
- Insertion Loss: 0.06 dB at 6 GHz, 0.03 dB at 10 GHz
- Contact Resistance: 3.0 milliohms initial, 4.0 milliohms after environmental testing
- Body Material: Stainless steel, gold plated
- Seal Type: Hermetic feedthrough, silicone rubber
- Altitude Range: Sea level to 70,000 feet
- Temperature Range: -65°C to +165°C
- Environmental Compliance: MIL-STD-202 methods
Buy the Johnson Series 2.92mm RF Adapter: 1341000001
Order the Johnson 2.92mm RF adapter online today to ensure high-performance connections for your RF systems. Designed for demanding applications, it supports frequencies up to 40 GHz with a 50-ohm impedance. This adapter is perfect for RF communications, industrial automation, and 5G technology. Its hermetic, sealed feedthrough ensures reliable operation in harsh environments, with excellent electrical stability and minimal insertion loss. Buy online now to access fast delivery, quality assurance, and expert support for your high-frequency needs.
Get Johnson 1341000001 high-frequency RF adapter today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1341000001?
You can click on the BUY or RFQ button to purchase 1341000001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1341000001?
You can download the 1341000001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1341000001?
Johnson-Cinch Connectivity Solutions
