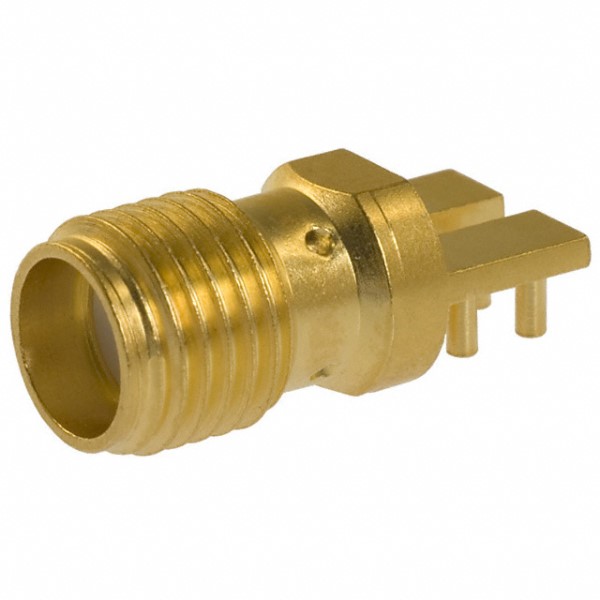

Johnson-Cinch Connectivity Solutions 1420761881 Datasheet & Stock
The Johnson High Frequency End Launch connector is designed to transition microwave energy from coaxial to planar transmission line structures. This patent-pending connector provides a unique solution for microwave engineers fabricating circuit designs on thin, high-frequency board substrates. It minimizes reflections compared to right-angle transitions and is suitable for applications like cellular amplifiers, microwave filters, and radar systems. The connector attaches directly to a coplanar waveguide circuit board, operates at frequencies up to 26.5 GHz, and features a self-contained design with optimized impedance and mechanical stability.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1420761881?
You can click on the BUY or RFQ button to purchase 1420761881 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1420761881?
You can download the 1420761881 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1420761881?
Johnson-Cinch Connectivity Solutions
