Johnson-Cinch Connectivity Solutions 1341000024 RF Adapter

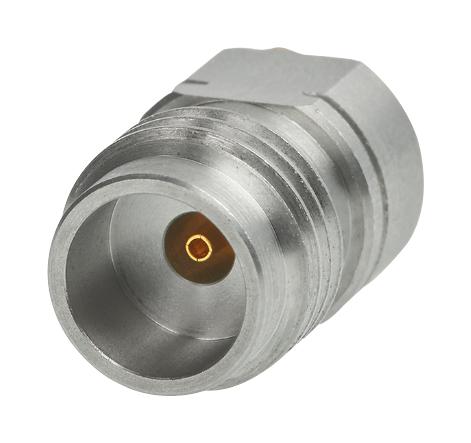

The 134-1000-024 is an inter-series adapter from Johnson Cinch, designed to convert between 1.85mm Jack and SMPM Jack connectors. Constructed with passivated stainless steel and gold-plated beryllium copper contacts, it provides high durability and excellent electrical performance. Supporting a 50-ohm impedance and operating up to 67 GHz, it ensures minimal signal loss with a maximum VSWR of 1.25. The adapter withstands a dielectric voltage of at least 325 VRMS, has an insulation resistance of over 5000 MΩ, and works reliably across a temperature range of -55°C to +125°C. Ideal for high-frequency RF testing, instrumentation, 5G networks, and communication equipment.
Johnson-Cinch Connectivity Solutions 1341000024 RF Adapter Specifications:
- Impedance: 50 Ohms
- Maximum Frequency: 67 GHz
- VSWR: Up to 1.25
- Material: Passivated stainless steel with gold-plated beryllium copper contacts
- Voltage Rating: 325 VRMS minimum
- Insulation Resistance: > 5000 MΩ
- Operating temperature: -55°C to +125°C
- Connection types: Jack to SMPM Jack
- Maximum Dielectric Voltage: 325 VRMS
- Supports RF signal integrity for high-frequency applications
Buy the Cinch 1341000024 – Reliable RF Adapter for Industrial Applications
Purchase the Cinch RF Adapter designed for converting 1.85mm Jack to SMPM Jack connections. Capable of supporting frequencies up to 67 GHz with minimal signal loss, this adapter features a stainless steel body and gold-plated contacts for durability and optimal electrical performance. It withstands high voltages and operates reliably across extreme temperatures, making it ideal for high-frequency testing, network infrastructure, 5G applications, and instrumentation. Easy to install, reliable, and designed for demanding environments, this adapter ensures seamless connectivity for advanced RF systems.
Get Cinch 1341000024 today—built for precision and long-lasting durability in high-frequency RF systems and communication networks.
