Johnson-Cinch Connectivity Solutions 1353711801 RF Connector

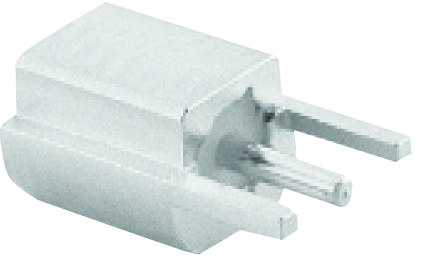

The MMCX End Launch Jack Receptacle is a high-quality, surface-mount connector designed for RF applications. It features a 50-ohm impedance, supporting frequencies up to 6 GHz, with excellent VSWR performance and durable construction. Made from brass and beryllium copper with gold plating, it ensures reliable electrical contact, vibration resistance, and environmental durability. Suitable for connecting flexible cables like RG-178 and RG-316, this connector offers rugged performance in aerospace, telecommunications, and test equipment, meeting MIL-STD compliance for harsh conditions.
Johnson-Cinch Connectivity Solutions 1353711801 RF Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: 0-6 GHz
- VSWR: 1.14 + 0.07 (flexible cable), 1.15 (semi-rigid)
- Working Voltage: 170 Vrms at sea level
- Dielectric Withstanding Voltage: 500 Vrms
- Insulation Resistance: 1000 megohms min
- Contact Resistance: 5.0 mΩ initial, 8.0 mΩ after environmental test
- Insertion Loss: 0.1 dB at 1 GHz (cabled), 0.2 dB (right angle)
- RF Leakage: -60 dB (flexible cable), -70 dB (semi-rigid)
- Operating Temperature: -65°C to +165°C
- Materials: Brass, beryllium copper, PTFE insulators, gold plating
- Durability: Minimum 500 cycles
- Environmental Ratings: MIL-STD-202, MIL-C-39012 compliant
Buy the Cinch Series MMCX RF Connector: 1353711801
Upgrade your RF connections with this premium MMCX Connector offering 50-ohm impedance, excellent performance up to 6 GHz, and rugged durability for aerospace, telecom, and testing. Made from high-quality materials like brass and beryllium copper with gold plating, it ensures reliable electrical contact, resistance to vibration, corrosion, and environmental stress. Its compact surface-mount design simplifies integration into various electronic assemblies, meeting MIL-STD requirements for harsh conditions. Purchase online today and secure dependable, high-performance connectivity for your projects.
Order your Cinch Series MMCX RF connector today and ensure reliable connectivity for high-frequency RF applications in demanding environments.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1353711801?
You can click on the BUY or RFQ button to purchase 1353711801 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1353711801?
You can download the 1353711801 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1353711801?
Johnson-Cinch Connectivity Solutions
