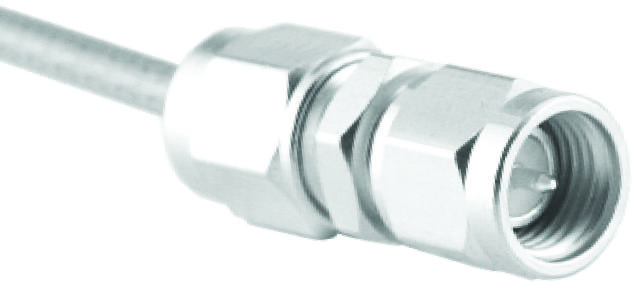

Johnson-Cinch Connectivity Solutions 1420203011 RF SMA Connector
This RF coaxial connector is a solder SMA straight plug designed for high-frequency applications. Made with a gold-plated brass body and contacts, it ensures excellent conductivity and durability. The PTFE insulator provides low dielectric loss and reliable performance up to 26.5 GHz, ideal for RF communications, industrial, and 5G wireless systems. It features a precise threading engagement, low VSWR, and is built to meet MIL standards for environmental resilience. Suitable for use with cables like RG-161, RG-174, RG-188, and RG-316, this connector guarantees excellent signal integrity and mechanical stability in demanding electronic environments.
Johnson-Cinch Connectivity Solutions 1420203011 RF SMA Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: 0-26.5 GHz
- VSWR: 1.15 + .01f (at 1 GHz), 1.15 + .02f (at 6 GHz), 1.20 + .03f (at 12.4 GHz), 1.20 + .03f (at 18 GHz)
- Working Voltage: 335 Vrms at sea level, 85K feet
- Dielectric Withstanding Voltage: 1000 VRMS minimum
- Insertion Loss: 0.03 dB at 1 GHz, 0.15 dB at 6 GHz
- Mechanical Ratings: Mating torque 7-10 in-lb, bulkhead nut torque 15 in-lb
- Materials: Brass body, gold-plated; PTFE insulator, gold-plated contacts
- Environmental Ratings: -65°C to +165°C, MIL-STD-202 compliant
- Cable Compatibility: RG-161, RG-174, RG-188, RG-316; semi-rigid and flexible coaxial cables
- Contact Resistance: 3 mΩ initial, 6-8 mΩ after environmental exposure
- Durability: 500 mating cycles minimum
- Connector Type: SMA straight plug, solder type
Buy the Cinch Series SMA: 1420203011
Purchase the Cinch Series SMA 1420203011 today to ensure high-performance RF connections for your communication systems. Made with durable gold-plated brass and PTFE insulator, this connector supports up to 26.5 GHz, making it ideal for advanced RF, industrial, and 5G applications. Its precise threading, low VSWR, and MIL-grade environmental resilience guarantee reliable signal integrity and mechanical stability in demanding conditions. Easily integrated with RG-161, RG-174, RG-188, and RG-316 cables, this solder SMA connector provides superior performance, durability, and ease of installation for professionals seeking quality RF components.
Order your Cinch Series SMA 1420203011 today and give your RF projects the dependable quality they deserve, ensuring reliable high-frequency communication.
