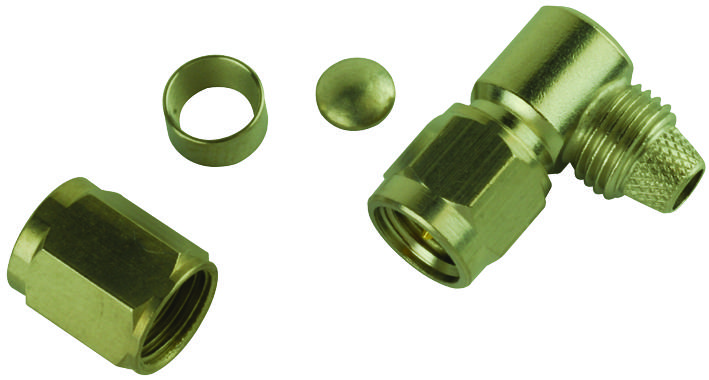

Johnson-Cinch Connectivity Solutions 1420207106 SMA Connector
This is a solder-type SMA right-angle plug designed for RF coaxial cables such as RG58, RG141, and RG303. It features a nickel-plated brass body, gold-plated contacts, and a PTFE insulator. Suitable for RF communications, industrial applications, and 5G wireless networks, this connector offers excellent electrical performance with impedance of 50 ohms and frequency range up to 12.4 GHz. It complies with MIL standards, providing durability through 500 mating cycles and environmental resistance for demanding conditions.
Johnson-Cinch Connectivity Solutions 1420207106 SMA Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: 0-12.4 GHz
- VSWR: 1.15 + 0.02f (for RG-58 and similar cables)
- Material: Brass body, gold-plated contacts, PTFE insulator
- Environmental Ratings: MIL-STD compliant for durability and corrosion resistance
- Mating Cycles: Minimum 500 cycles
- Operating Temperature: -65°C to +165°C
- Mechanical: Torque 7-10 inch-pounds, bulkhead nut torque 15 inch-pounds
- Power Rating: 0.5 watt at +25°C, derated to 0.25 watt at +125°C
- Insulation Resistance: 5000 megohms minimum
- Contact Resistance: Max 0.03 milliohms at tested frequencies
- Outer diameter: Approx. 0.312 inches (7.92 mm)
Buy the Buy Cinch Connectivity SMA 50 Ohm Part Number 1420207106 Online
Purchase the Cinch Connectivity SMA 50 Ohm right-angle plug with nickel-plated brass body and gold-plated contacts online today. This durable RF connector is designed for coaxial cables like RG58, RG141, and RG303, ensuring excellent electrical performance up to 12.4 GHz. Its MIL-spec construction guarantees durability in harsh environments, with over 500 mating cycles. Whether for industrial, wireless, or 5G applications, buying online offers fast delivery, competitive pricing, and trusted quality for your RF connectivity needs.
Buy Cinch Connectivity SMA 50 Ohm Part Number 1420207106 now and experience unmatched reliability and high-frequency performance in RF communications.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1420207106?
You can click on the BUY or RFQ button to purchase 1420207106 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1420207106?
You can download the 1420207106 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1420207106?
Johnson-Cinch Connectivity Solutions
