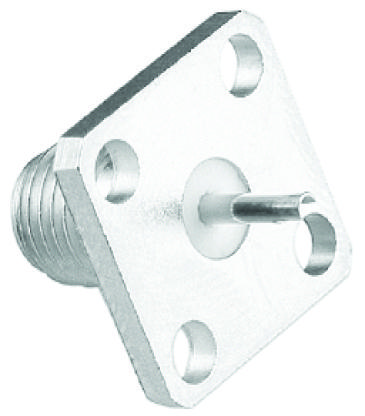

Johnson-Cinch Connectivity Solutions 1420701631 RF Connector
This flange-mount solder SMA straight jack connector offers high-frequency performance with a gold-plated brass body, gold-plated contacts, and a PTFE insulator. Designed for seamless integration in RF communication systems, it features a 50 Ohm impedance, rated up to 18 GHz frequency range, and robust environmental and mechanical ratings including MIL-STD compliance. Its durable construction ensures stability in industrial, 5G, and wireless communication setups, providing excellent electrical characteristics, corrosion resistance, and reliable mating engagement suitable for demanding RF applications.
Johnson-Cinch Connectivity Solutions 1420701631 RF Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: 0-18 GHz
- VSWR: N/A
- Insertion Loss: 0.15 * f(GHz) tested at 6 GHz
- Material: Brass body, gold or nickel plated
- Contacts: Gold-plated male, beryllium copper female
- Insulator: PTFE fluorocarbon
- Outer contact: Gold or nickel plated
- Power Rating: 0.5 watt @ +25°C, derated to 0.25 watt @ +125°C
- Temperature Range: -65°C to +165°C
- Environmental Ratings: MIL-STD compliant for shock, vibration, moisture, corrosion
- Mechanical Ratings: 500 cycles, engagement force 2 inch-lb, mating torque 7-10 inch-lb
- Connector Size: 0.500 inches (EO), 0.340 inches diameter
- Mounting: Flange-mount with four-hole configuration
- Connectors for cable types: RG-178, RG-316, LMR series, RG-58, RG-142, semi-rigid
- Seal: Silicone rubber, EMI gasket options available
- Additional features: Field replaceable contacts, specialized in high-frequency RF environments
Buy the Cinch SMA – Reliable High-Frequency RF Connector for Industrial Applications
Enhance your RF communication setups with the Cinch SMA flange-mount solder jack connector, designed for durability, high frequency performance, and easy installation. Perfect for industrial, 5G, and wireless systems, this 50 Ohm connector features gold-plated brass construction, with excellent electrical and environmental ratings. Its robust design ensures a stable connection up to 18 GHz, making it ideal for demanding RF applications. Purchase online to ensure fast delivery and reliable performance for your high-frequency needs.
Buy Cinch SMA connector now and experience unmatched reliability and performance in high-frequency RF communications.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1420701631?
You can click on the BUY or RFQ button to purchase 1420701631 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1420701631?
You can download the 1420701631 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1420701631?
Johnson-Cinch Connectivity Solutions
