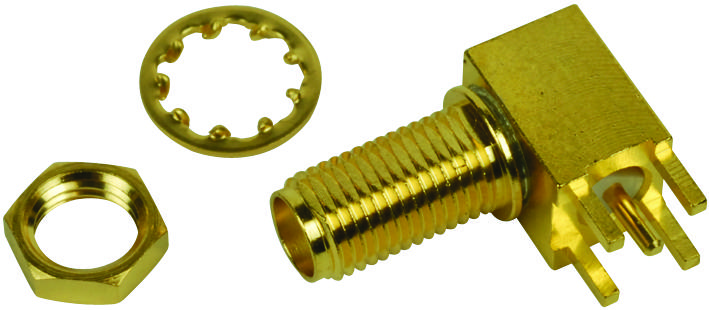

Johnson-Cinch Connectivity Solutions 1420701501 SMA RF Connector
The SMA RF coaxial connector featuring a right-angle bulkhead jack receptacle offers a reliable, high-performance solution for microwave and RF applications up to 18 GHz. Crafted from gold-plated brass, it ensures excellent conductivity and corrosion resistance, with a characteristic impedance of 50 ohms. Designed for PCB mounting with solder terminations, it includes gold-plated contacts and insulators made from PTFE fluorocarbon or Tefzel. Suitable for defense, aerospace, signal processing, and 5G wireless systems, it guarantees high insulation resistance and durability for demanding environments.
Johnson-Cinch Connectivity Solutions 1420701501 SMA RF Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: Up to 18 GHz for uncabled receptacles, field replaceable, and adapters
- VSWR: N/A at specified frequencies
- Body Material: Brass with gold or nickel plating
- Contact Material: Brass, gold-plated
- Insulation Material: PTFE fluorocarbon or Tefzel
- Maximum Insulation Resistance: 5000 megaohms
- Maximum Voltage: Not specified, suitable for RF signals
- Operating Temperature: -65°C to +165°C
- Mating Force: 7 to 10 inch-pounds
- Bulkhead Nut Torque: 15 inch-pounds
- Durability: Minimum 500 cycles
- Environmental Ratings: MIL-STD-202 compliant for shock, vibration, corrosion
- Dimensions: Receptacle diameter approximately 0.250 inches, length 0.45 inches
- Material Specifications: Brass bodies, gold or nickel plated, conductive silicone rubber EMI gaskets
Buy the Buy Cinch SMA 50 Ohm Part Number 1420701501 Online
Secure your RF and microwave connections efficiently with the Cinch Series1420701501 SMA connector. Designed for PCB mounting with solder terminations, it provides optimal performance up to 18 GHz with high insulation resistance and durability. Featuring high-quality gold-plated brass construction and precision insulators, this connector is ideal for aerospace, defense, signal processing, and 5G wireless systems. Easily order online and get reliable, high-performance RF connections delivered quickly to support your critical applications.
Order your Cinch Series1420701501 SMA RF connector today and ensure your projects have the high-quality, durable connection they need for demanding RF applications.
