Johnson-Cinch Connectivity Solutions 4150016MM500 RF Cable Assembly

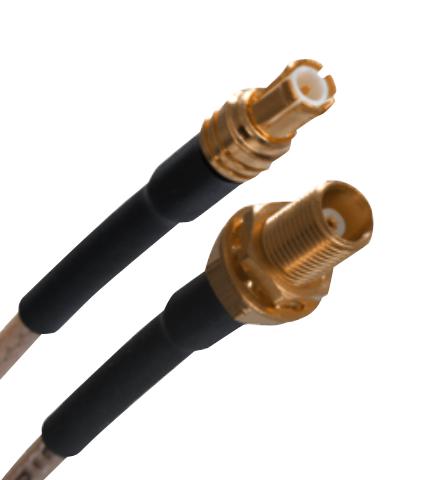

The 415-0016-MM500 is an RF cable assembly featuring an MCX straight plug on one end and an MCX straight bulkhead jack on the other. Made with RG-316 coaxial cable, it has a standard length of 19.7 inches (500 mm). The assembly has an impedance of 50 ohms, suitable for frequencies up to 6 GHz. It supports a dielectric withstanding voltage of 1000 VRMS and a working voltage of 335 VRMS. This cable is commonly used in cellular, communication, and information systems.
Johnson-Cinch Connectivity Solutions 4150016MM500 RF Cable Assembly Specifications:
- Connector Type: MCX straight plug to MCX straight bulkhead jack
- Cable Type: RG-316 coaxial cable
- Length: 19.7 inches (500 mm)
- Impedance: 50 ohms
- Frequency Range: up to 6 GHz
- Voltage Rating: 1000 VRMS (dielectric withstand voltage)
- Working Voltage: 335 VRMS
- Application: Cellular, communication, and information systems
- Material: Copper conductor with dielectric insulator
- Outer Diameter: approximately 2.3 mm
- Temperature Range: -55°C to +105°C
- Connector Plating: Gold-plated contacts
- Certification: RoHS compliant
- Supports high-frequency signal transmission with low VSWR
Buy the Cinch Series MCX RF Cable: 4150016MM500
Purchase the Cinch MCX RF Cable assembly 4150016MM500 online now to ensure reliable signal transmission in cellular, communication, and radio frequency systems. This high-quality connector cable features an RG-316 coaxial cable with MCX straight connectors at both ends, offering 50 ohms impedance, rated for frequencies up to 6 GHz. Its 19.7-inch length ensures flexible deployment for your communication needs. Designed for durability and precise performance, this assembly supports high-voltage dielectric withstand ratings of 1000 VRMS, making it ideal for demanding RF environments in industrial, aerospace, and military applications. Order now for fast shipping and technical support!
Get Cinch MCX RF Cable assembly 4150016MM500 today—built for precision and long-lasting durability in high-frequency applications.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 4150016MM500?
You can click on the BUY or RFQ button to purchase 4150016MM500 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 4150016MM500?
You can download the 4150016MM500 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 4150016MM500?
Johnson-Cinch Connectivity Solutions
