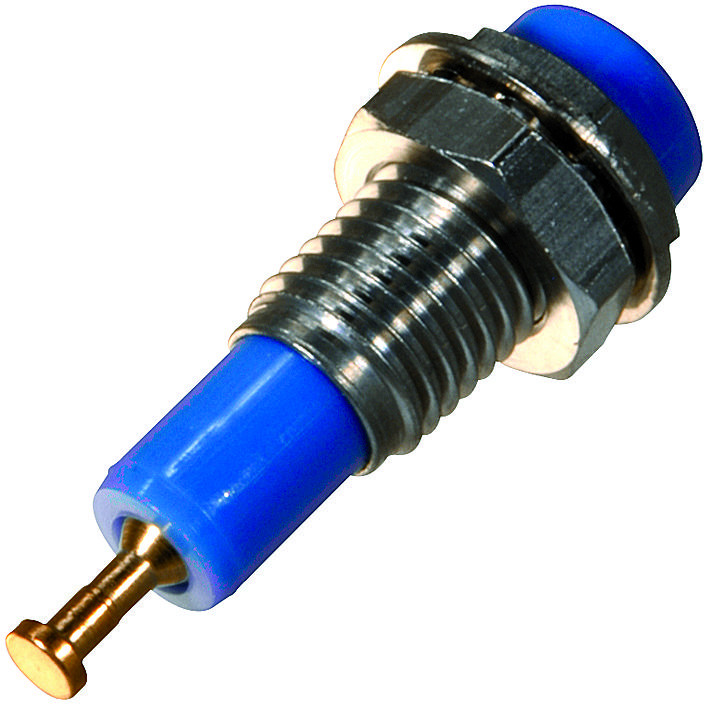

Johnson-Cinch Connectivity Solutions 1050210200 Insulated Tip Jack
The insulated metal-clad tip jack is designed for military and industrial use, featuring a machined brass contact with a turret terminal. Its closed entry design prevents access to probes larger than 0.085 inches, ensuring safety and precision. The body is made from UL-listed nylon 6/6, providing self-extinguishing properties. Gold-plated contact surface enhances conductivity and corrosion resistance. Meets MIL-C-39024/10 standards, suitable for rugged environments, and compatible with standard tip plugs of 0.080 inches. Ideal for reliable electrical connections in demanding applications.
Johnson-Cinch Connectivity Solutions 1050210200 Insulated Tip Jack Specifications:
- Material: Brass body with gold-plated contact surface
- Body Material: Nylon 6/6, UL approved and self-extinguishing
- Contact Resistance: 0.004 ohms maximum
- Breakdown Voltage: 5700 V minimum
- Current Rating: 10 amps
- Panel Thickness: Up to 218 mils (5.45 mm)
- Insulation: Nylon UL-listed for self-extinguishing
- Threaded Brass Jacket: Nickel plated, per QQ-B-626D
- Hardware: Nickel plated washer and nut
- Tip Diameter: 0.080 inches (2.00 mm)
- Max Probe Access: Probes larger than 0.085 inches prevented by closed entry
- Standards: MIL-C-39024/10, QQ-8-626D, QQ-C-533
- Finish: Gold plated
- Manufactured for military and industrial applications
Buy the Connectimty Solutions Series Tip Jack: 1050210200
Purchase the insulated tip jack from Connectimty Solutions now for robust military and industrial connections. Featuring brass contacts with gold plating, a self-extinguishing nylon body, and compliance with MIL-C-39024/10 standards, this high-quality connector guarantees durability, safety, and precision in demanding environments. Compatible with standard 0.080-inch tip plugs, it's ideal for critical electrical applications where reliability matters. Order online today and elevate your equipment’s performance with this rugged, dependable, and easy-to-install connection solution.
Order your Connectimty Solutions Series Tip Jack 1050210200 today and ensure reliable military-grade connections for your industrial applications.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1050210200?
You can click on the BUY or RFQ button to purchase 1050210200 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1050210200?
You can download the 1050210200 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1050210200?
Johnson-Cinch Connectivity Solutions
