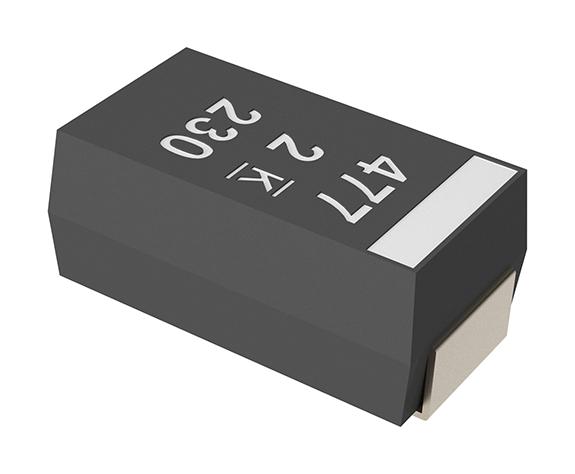

KEMET A700V156M016ATE040 Polymer Aluminum Capacitor
The A700 polymer aluminium organic capacitor offers a compact, high-performance solution for decoupling in microprocessors, FPGA, and ASIC applications. Featuring a conductive organic polymer cathode, it exhibits low ESR, high ripple current capacity, and excellent high-frequency stability. Its electrolyte-free design ensures long-term reliability, high operational temperature (-55/+125°C), and robust operation in demanding environments like DC/DC converters and telecommunications equipment. With UL94 V-0 compliance and EIA standard case sizes, this capacitor combines advanced polymer technology with durability for industrial electronics and high-frequency circuits.
KEMET A700V156M016ATE040 Polymer Aluminum Capacitor Specifications:
- Capacitance: 15 uF
- Capacitance Tolerance: 20%
- Voltage DC: 16 VDC
- Temperature Range: -55/+125°C
- Dimensions: Length 7.3mm ±0.3mm, Width 4.3mm ±0.3mm, Height Max 2mm, Seal Width 1.3mm ±0.3mm, F 2.4mm ±0.1mm
- RoHS: Yes
- Termination: Tin
- Burning Time Shelf Life: 104 Weeks
- Rated Temperature: 125°C
- Dissipation Factor: 6% at 120Hz 25°C
- Resistance: 40 mOhms at 100kHz 25°C
- Ripple Current: 2600 mA (rms 100kHz)
- Leakage Current: 10 uA (5 min at 25°C)
Buy the KEMET A700V156M016ATE040 – Reliable Polymer Aluminum Capacitor for Industrial Applications
Secure your high-performance electronics with the KEMET polymer aluminum capacitor. Designed for demanding applications, it offers low ESR, high ripple current capacity, and stable operation across a wide temperature range. Its compact size makes it ideal for decoupling microprocessors, FPGA, and ASICs in telecommunications, industrial, and computing devices. With UL94 V-0 compliance and exceptional long-term reliability, purchasing online ensures quick delivery, consistent quality, and the right specifications for your innovative designs. Optimize your electronic systems today.
Buy KEMET A700V156M016ATE040 now and experience unmatched reliability and high-frequency performance in demanding industrial electronics.
Frequently Asked Questions
Where can I buy KEMET A700V156M016ATE040?
You can click on the BUY or RFQ button to purchase A700V156M016ATE040 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part A700V156M016ATE040?
You can download the A700V156M016ATE040 datasheet or visit the KEMET website for support.
Who is the manufacturer of A700V156M016ATE040?
KEMET
