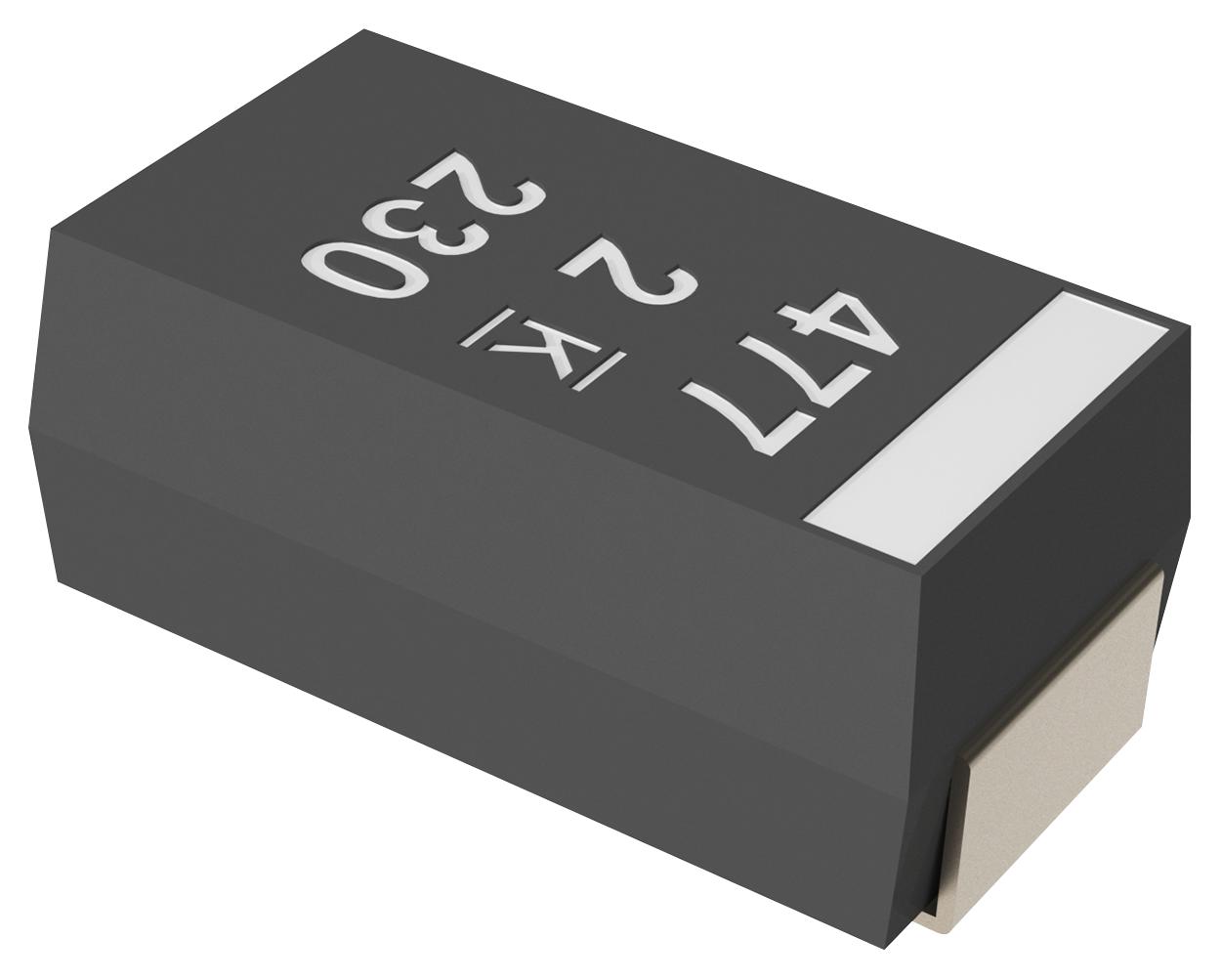

KEMET A700X227M006ATE007 Polymer Aluminum Capacitor
The A700X227M006ATE007 is a surface-mount polymer aluminum capacitor designed for reliable performance in various electronic circuits. Featuring a capacitance of 220 microfarads, a voltage rating of 6.3VDC, and a temperature range of -55°C to +125°C, it ensures stable operation across harsh conditions. Its compact dimensions include a height of 4mm, width of 4.3mm, and length of 7.3mm. RoHS compliant, halogen-free, with UL94V-0 flammability rating, and equipped with tin termination for enhanced electrical conductivity and durability. Suitable for applications requiring efficient energy storage, filtering, and power management with high ripple current capacity and low ESR, ensuring robust performance in compact electronic assemblies.
KEMET A700X227M006ATE007 Polymer Aluminum Capacitor Specifications:
- Capacitance: 220 uF
- Capacitance Tolerance: 20%
- Voltage DC: 6.3 VDC
- Temperature Range: -55°C to +125°C
- Dimensions: Length 7.3mm ±0.3mm, Width 4.3mm ±0.3mm, Height 4mm ±0.3mm
- Material: Polymer Aluminum
- Termination: Tin
- RoHS: Yes
- Halogen Free: Yes
- Rated Temperature: 125°C
- Dissipation Factor: 6% at 120Hz 25°C
- Leakage Current: 55 uA (5 min at 25°C)
- Ripple Current: 5700 mA (rms 100kHz)
- Resistance: 7 mOhms (at 100kHz 25°C)
- UL Flammability: UL94V-0
- Packaging: T&R, 180mm
- Shelf Life: 104 Weeks
- Component Weight: 305.03 mg
Buy the Buy KEMET Capacitor Part Number A700X227M006ATE007 Online
Enhance your electronic projects with the KEMET Polymer Aluminum Capacitor A700X227M006ATE007. Delivering 220 microfarads at 6.3 volts, it operates reliably from -55°C to +125°C, with compact dimensions and durable tin termination. RoHS compliant and halogen-free, this capacitor is suitable for power management, filtering, and energy storage solutions in demanding applications. Its high ripple current capacity, low ESR, and long shelf life make it an essential component for high-performance, reliable electronic devices. Order now to ensure optimal circuit performance.
Buy KEMET A700X227M006ATE007 now and experience unmatched reliability and high performance in power filtering and energy storage applications.
Frequently Asked Questions
Where can I buy KEMET A700X227M006ATE007?
You can click on the BUY or RFQ button to purchase A700X227M006ATE007 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part A700X227M006ATE007?
You can download the A700X227M006ATE007 datasheet or visit the KEMET website for support.
Who is the manufacturer of A700X227M006ATE007?
KEMET
