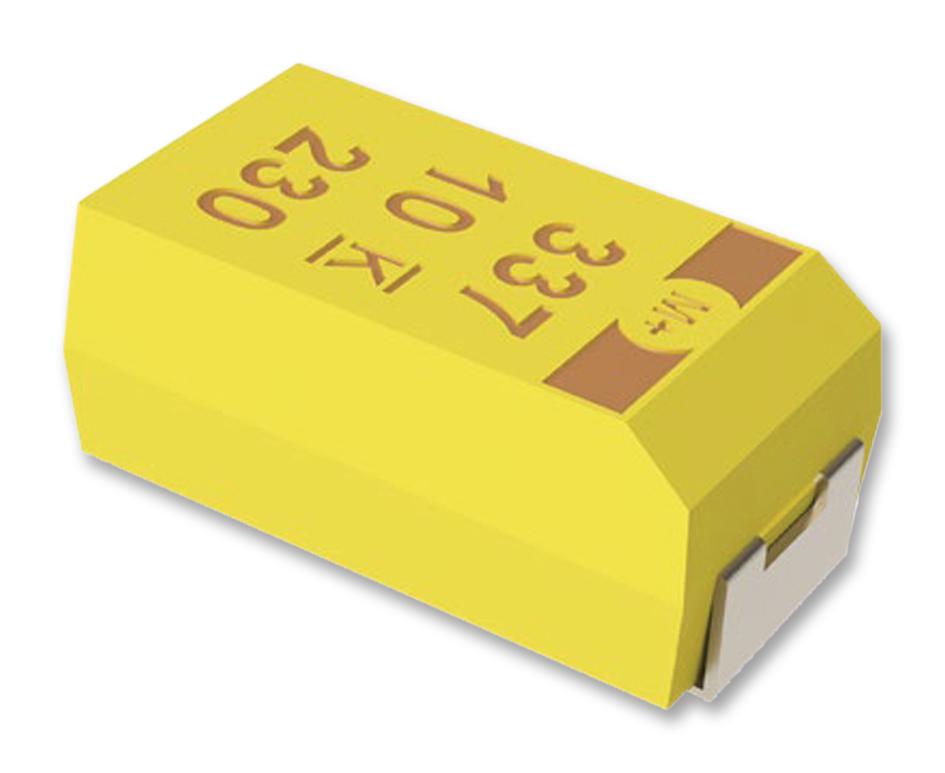

KEMET T496X107K016ATE700 Fuse Capacitor
The T496 series fuse-capacitors offer high reliability for applications like decoupling and filtering in telecommunications, defense, and industrial systems. They feature a built-in fuse for protection against short circuits, meeting MIL-PRF-55365 standards. With a voltage rating from 4V to 50V and capacitance ranging from 0.15μF to 470μF, these Surface Mount Capacitors operate across -55°C to +125°C. They are RoHS compliant, halogen-free, and include options for surge testing, making them suitable for high-reliability environments.
KEMET T496X107K016ATE700 Fuse Capacitor Specifications:
- Capacitance: 0.15 μF to 470 μF
- Voltage rating: 4 - 50 VDC
- Operating temperature: -55°C to +125°C
- Dissipation Factor: Refer to electrical specification table
- Equivalent Series Resistance (ESR): Refer to electrical specification table
- Leakage current: less than 0.01 CV at rated voltage after 5 minutes
- Fuse actuation: within 1 second at fault currents of 4 amps and higher at 25°C
- Continuous current capability: 0.75 amps
- Post actuation resistance: minimum 10 MO at 25°C
- RoHS compliant, halogen-free epoxy, suitable for high-reliability applications
- Dimensions and physical sizes vary with case classifications
Buy the KEMET Series T496 Fuse Capacitors: T496X107K016ATE700
Order the KEMET fuse capacitor T496X107K016ATE700 online today for high-reliability protection in demanding applications. These surface mount capacitors feature built-in fuse design, operate reliably from -55°C to +125°C, and meet MIL-PRF-55365 standards. Ideal for decoupling and filtering in telecommunications, defense, and industrial systems, they offer voltages up to 50V and capacitance from 0.15μF to 470μF. RoHS compliant, halogen-free, with surge testing options—purchase now for dependable performance and seamless integration into your circuit designs.
Get KEMET T496X107K016ATE700 today—built for precision, advanced fuse protection, and long-lasting durability in high-reliability environments.
Frequently Asked Questions
Where can I buy KEMET T496X107K016ATE700?
You can click on the BUY or RFQ button to purchase T496X107K016ATE700 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part T496X107K016ATE700?
You can download the T496X107K016ATE700 datasheet or visit the KEMET website for support.
Who is the manufacturer of T496X107K016ATE700?
KEMET
